Waste Shredder Price Wood Pallet Plastic Shredding Machine

Product Description

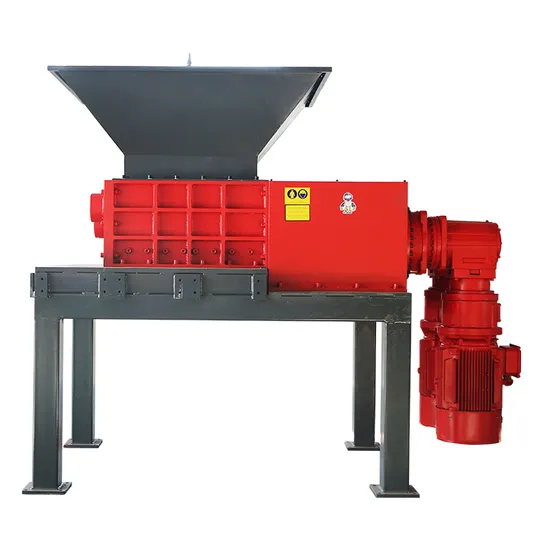

Product DescriptionFour Shafts Shredder (MSC-Series)four shaft shredders, or name it quad shredders, are perfectly suitable for scrap size reduction applications such as e-waste, rubber tire recycling, RDF production, and contaminated materials where uniformed medium particle size is desired. The four shaft shredders are very robust and built to sustain tough operating conditions without problem.ENERPAT four shaft shredders are available in different sizes and works perfectly in combination with other recycling machines. Each of the discs is made of alloy steel or furnished with a tool steel head. The discs can be replaced quickly thanks to the special shaft and blade design. The tool steel head is exchangeable quickly and without effort, which results in a significant reduction of tool changing times. The specific shape of the discs guarantees to crush material with little expenditure of energy, it makes the scrap-shredder to be durable.
Details
Detachable boxThe shredding chamber body can be deconstructed from each end of the coupling. The main shaft can be detached as a whole by removing the mounting plate at each end of the bearing.
Once the main shaft is dismantled,the cutter body and bearings can be kept and inspected,and if need be,then it can be replaced as well.
Regarding the processing ofthe shredding chamber,care should be taken to position the main shaft and bearing at central position during installation to ensure that the structure remains intact and lasts longer.
Heavy-load planetary reducerIt has a box of rigid casting reducer consisting of gussets.
The sturdy finishing gear is composed of high-quality steel alloy,and the surface is processed through carburizing and quenching methods.
Then,the structure is finely processed by means of gear grinding.This through process ensures many operational benefits,such as stable transmission power, low noise and greater carrying capacity.
Detachable cutterDetachable blade design greatly reduces blade replacement time
A complete crushing blade comprises of three parts.
It is quite easy to replace a worn blade: simply loosen and tighten the bolt.
Electric systemThe electric cabinet is equipped with a Siemens/Sch neider PLC.
The electric cabinet boasts a touch screen with a high capability of promoting human-machine interaction.
Siemens/Sch neider electrical components are adopted.
Sealing systemThe bearing has a quadruple sealing protection design which makes it dust proof and waterproof, effectively prolonging the service life of the bearing.
Therefore,it can work excellently in an outdoor, highly dusty environment.
Auxiliary systemA pressing device is optional.It can help to crush materials rapidly.
A rotating screen is optional,and it guarantees dimensional uniformity of crushed products.
Splined main shaftThe moving blade base and the main shaft align in spline transmission.
The design consist of a large surface junction without stress concentration.The spiral
configuration of the moving blade base can enhance its crushing efficiency and reduce energy consumption.
The moving blade base has been tested by using 100% ultrasonic and non-destructive inspection to maximize the cutter's crushing capacity. dimensional uniformity of crushed products.
Heavy-load self-aligning bearingWe install heavy-load self-aligning bearings on two main shafts.
When a blade is impacted by a heavy load,the heavy-load self-aligning bearing produces an immense mechanical action that relieves the impact force.
We choose the world's leading bearings.of brands such as FAG and SKF as a standard configuration for all ENERPAT shredders.
Applications
· PlasticsMouldings, Purgings/Lump, Profiles, Films etc.· Timber/WoodPallets, Joiners Waste, Green Waste etc.· Paper & CardboardConfidential Documents, Production Waste, Packaging Materials etc.· Copper CableHousehold, Telecoms and Industrial Cables including S.W.A· AluminumUsed Beverage Cans (UBC's), Swarf, Cables etc.· TextilesCarpet (Rolls & Tiles), Garments etc.· Security DestructionCounterfeit Items, Faulty Goods, Out of Date Stock etc.· FoamProduction Waste etc.Technical Data SheetFour shaft shredder(Medium type)

Model	MSC-E900S	MSC-E900L	MSC-E1000S	MSC-E1000	MSC-E1000XL
Blade Diameter(mm)	Φ290	Φ290	Φ320	Φ320	Φ320
Shaft Speed(rmp)	15-25	15-25	15-25	15-25	15-25
Blade Thickness(mm)	25	25	40	40	40
Blade Quantity(pcs)	32*2	40*2	25*2	30*2	30*2
Shredding Chamber Size(mm)	900*800	900*1000	1000*1000	1000*1200	1000*1400
Motor Power(kw)	18.5*2	18.5*2	22*2	22*2	22*2
Machine Size(mm)	2400*1550*2500	2600*1550*2500	2900*1700*2800	3100*1700*2800	3300*1700*2800
Machine Weight(kg)	4700	5000	6600	7100	7600

Four shaft shredder(Heavy type)

Model	MSC-E1300S	MSC-E1300L	MSC-E1300XL	MSC-E1600S	MSC-E1600L	MSC-E1600XL
Blade Diameter(mm)	Φ430	Φ430	Φ430	Φ510	Φ510	Φ510
Shaft Speed(rmp)	10-25	10-25	10-25	10-25	10-25	10-25
Blade Thickness(mm)	50	50	50	50	50	50
Blade Quantity(pcs)	24*2	28*2	32*2	32*2	36*2	40*2
Shredding Chamber Size(mm)	1300*1200	1300*1400	1300*1600	1600*1600	1600*1800	1600*2000
Motor Power(kw)	30*2+15*2	30*2+15*2	30*2+15*2	45*2+30*2	45*2+30*2	45*2+30*2
Machine Size(mm)	4100*2000*3100	4300*2000*3100	4500*2000*3100	4800*2300*3600	5000*2300*3600	5200*2300*3600
Machine Weight(kg)	15600	16000	17000	22500	23700	25000
