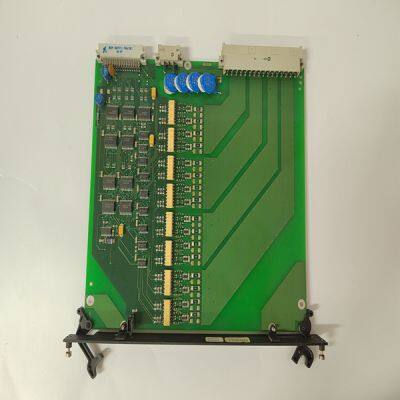

ALSTOM LE109A-1

Product Details

Product Description

Product Description
Brand:ALSTOM
Type:LE109A-1
Origin:the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
INPUTS/OUTPUTS BASIC CIRCUIT DIAGRAMS Digital Inputs/Outputs Voltage supply of the digital I/O 24 V DC (18-36 V DC) SELV pursuant to DIN EN 60950-1 Current consumption of the digital I/O 0.3 A in idling; all digital outputs active: 2 A 4 digital inputs and outputs Individually configurable in MACS as input or output Inputs: type 2 (current-consuming) pursuant to IEC 61131-2 Outputs: max. 0.5 A Sustained short-circuit protected, thermal overload protection Watchdog output: "Outputs enabled" signal Outputs in operation. In the event of a fault, the watchdog output goes to a high impedance state
SENSOR INTERFACES DIMENSIONS Sensor Interfaces 4 Sensor interfaces each configurable as a) Incremental encoder • Standard • Pulse train • Frequency measurement b) SSI transmitter Signals corresponding to TIA/EIA 422 (previously RS 422) with protection against 24 Volt. Wire fault monitoring of inputs. Configurable in MACS software: a) Incremental encoder four-edge evaluation, max. pulse frequency 8 MHz b) SSI sensor master or slave data format: gray or binary code; data bits 8 to 32 Bit; transmission frequency: 78 kHz to 5 MHz
ACCESSORIES Designation Scope of Functions Order number Controls (Color: Grey) MACS runtime license for application program • CoDeSys operators and standard IEC 61131 library • MSC II hardware library • Moog control technique library • Interface library for TIA/EIA 232 and CAN bus • Support for OPC and DDE interfaces • Ethernet communication to MACS development environment D138-002-001 Motion (Color: green) All functions of "Controls" and additionally: • Motion control library according to PLCopen • Moog motion control function blocks • Library with transfer functions (Z functions) • CANopen and TCP/IP libraries • Profibus-DP slave (depending on hardware option) • EtherCAT master (depending on hardware option) D138-002-002 System (Color: red) Program parts and/or complete application programs, produced specifically upon customers request Is stipulated specific to the order Accessories Plug-in terminal strips (four 10-pole and two 9-pole are needed per module) Designation Description Order number Screw terminal, 9-pole Up to max. conductor cross-section of 2.5 mm2 (14 AWG) VK055-009 Spring-power clamp, 9-pole Up to max. conductor cross-section of 2.5 mm2 (14 AWG) B95907-009 Spring-power clamp, 10-pole Up to max. conductor cross-section of 0.5 mm2 (20 AWG) CA45260-010

---
