US$9,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Required Paper
Double Side PE Coated Paper
Paper Material
140-320G/M2
Machine Speed
Max Speed:105PCS/Min,Stable Speed :85PCS/Min
Overall Size
2.23X1.14X1.8m
Opeartion Space
About 3000*3000mm
Specification
2.23X1.14X1.8m
Product Description

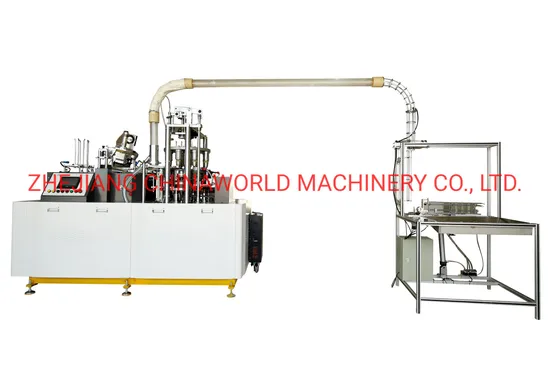

CW-85S Paper Cup Making Machine
Product Description
Machine equip with Ultrasonic,collecting table,PLC and Touch screen.
1.One disk,direct bottom
2.Auto bottom paper feeding
3.Auto waste bottom paper conveyor
4.Auto lubrication
5.High speed ,max speed 105pcs/min.stable speed 85pcs/min
6.No cup fan material alarm,
7.No cup cone alarm,
8.Drop cup alarm
Product Parameters
| Paper Cup Size | 2-12oz |
| Paper Material | 140-320g/m2,One Side PECoated Paper Or Double |
| Speed | Max Speed:105pcs/min,Stable speed :85Pcs/min |
| Power source | 380V 50HZ |
| Heating total power | 5KW |
| Main motor | 1.5KW |
| Total Power | 7.5kw |
| Weight | 2200kg |
| Overall size | 2.23X1.14X1.8m |
| Air pressure | ≤0.4MPa(used for auto bottom paper feeding) |
| Operation person | 1person and more machines |
| Opeartion space | About 3000*3000mm |
| Note | Can be customized according to your requirements |
| |
Configuration list
| Configuration list |
| Name | Model | Origin | Remarks | QTY |
| Main motor | CH-25-1.5 | Taiwan | Chenggang | 1 |
| Frequency converter | Em60-1.5kw | Japan | Panasonic | 1 |
| Photoelectricity | PSE17-5DN | Korea | Ottonico | 3 |
| AC contactor | 0910 | France | France | 3 |
| Thermal couple | | Domestic | Huibang | 5 |
| Temperature control instrument | AI-208G | Domestic | Yudian | 5 |
| Botton | NP2-BA31 | Domestic | Chint | 12 |
| Relay | JZX-22F(D)/2Z | Domestic | Chint | 5 |
| Switching power supply | LRS-200-24 | Taiwan | Ming Wei | 1 |
| Circuit breaker | DZ47-60 1P C10 | Domestic | Chint | 6 |
| Circuit breaker | DZ47-60 3P D60 | Domestic | Chint | 1 |
| Exchange | CJX2-1810 220V | Domestic | Chint | 5 |
| Exchange | CJX2-4011 220V | Domestic | Chint | 2 |
Detailed Photos
