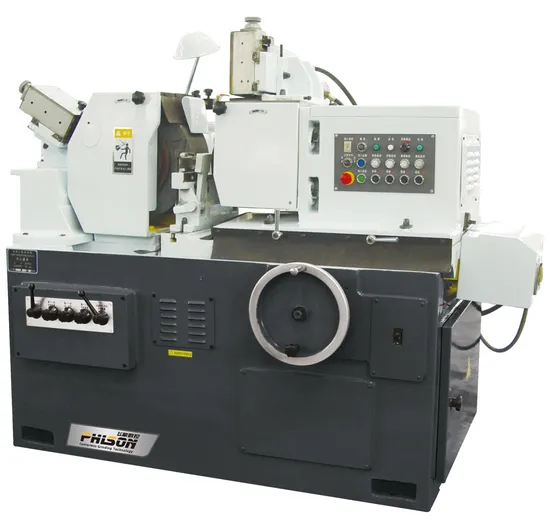

Precise Centerless Grinding Machine M1050A Centerless Grinder

Product Description

Centerless Grinding Machine M1050A
1. Salient features:

1.1 Grinding wheel and Regulating wheel
1.1.1.Structure of fixed grinding wheel and movable regulating wheel
1.1.2.The grinding wheel designed in cantilever type, and its spindle adopted
multi-plate long bearing bushed static-hydrodynamical oil film bearing.
1.1.3.Cantilevered regulating wheel, the spindle supports solid bearing sliding with 1:30 taper.
1.1.4.The regulating wheel feed slide is supported on Flat-V hydraulic unloaded guideway.

1.2. Electric
1.2.1.AC frequency converter is used for regulating wheel speed control .
1.2.2.Hydraulic transmission & stepless speed regulation are adopted on regulating wheel & grinding wheel dresser.

1.3. Machine body and design
1.3.1. Equipped automatic plunge device in the grinder.
1.3.2. Iron casting with high rigidity, natural aging.

2. Technical Data:

In-feed Grinding	Dia.	5-50mm
	Length	140mm
Through grinding	Dia.	5-50mm
GW SPEC. (O.D.*width*I.D.)		400*150*203mm
RW SPEC.(O.D.*width*I.D.)		PSA300*150*127mm
GW Speed		1668r/min
RW Speed (stepless)		20-200r/min
Swiveling Angle of RW	Vertical	-2°~ +5°
	Horizontal	0°~ +3°
RW carriage min. feed		0.001mm
GW dresser min feed		0.01mm
Height from center line of GW & RW to work rest		220mm
GW Motor		11kw
RW Motor		1.5kw
Power Supply		3N 50HZ 380V (optional)
Dimension(L*W*H)		1920*1681*1479mm
Machine Weight		About 2800KG
Accuracy (standard bars)	Roundness	0.002mm
	Cylindricity	0.003mm
	Roughness	Ra.0.32μm

---
