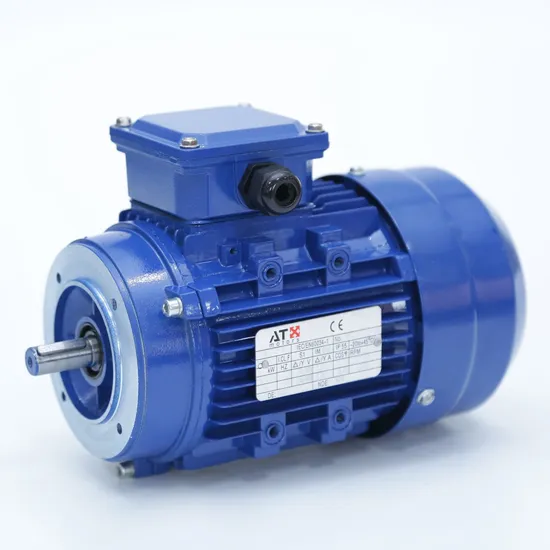

Ms Series Aluminium Housing B14 Mouting Three Phase Asynchronous Induction Electric Motor

Product Description

Workshop
Product Description
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details Packed by cartons & wooden cases.
Port ningbo/shanghai product description MS series aluminum shell three-phase asynchronous motor meets the national electrician association IEC regulations, selects high-quality raw materials for the latest overall design, has good performance, low noise, low vibration, safe and reliable operation, beautiful appearance, small size, light weight, structure Simple, easy to maintain and so on.
Installation size

Frame No.	A	Installation Size							Installation Size IMB14						Installation Size IMB5					Overall Dimension
		B	C	D	E	F	G	H	K	M	N	P	S	T	M	N	P	S	T	AB	AC	AD	HA	L
56	90	71	36	9	20	3	7.2	56	6	65	50	80	M5	2	100	80	120	8.5	3	112	108	93	149	192
63	100	80	40	11	23	4	8.5	63	7	75	60	90	M5	2.5	115	95	140	10	3	120	120	97	160	211
71	112	90	45	14	30	5	11	71	7	85	70	105	M6	2.5	130	110	160	10	3.5	135	140	104	175	240
80	125	100	50	19	40	6	15.5	80	10	100	80	120	M6	3	165	130	200	12	3.5	135	160	113	193	284
90S	140	100	56	24	50	8	20	90	10	115	95	140	M8	3	165	130	200	12	3.5	175	175	123	213	316
90L	140	125	56	24	50	8	20	90	10	115	95	140	M8	3	165	130	200	12	3.5	175	175	123	213	341
100L	160	140	63	28	60	8	24	100	12	130	110	160	M8	3.5	215	180	250	15	4	200	195	157	257	377
112M	190	140	70	28	60	8	24	112	12	130	110	160	M8	3.5	215	180	250	15	4	226	220	163	275	392
132S	216	140	89	38	80	10	33	132	12	165	130	200	M10	3.5	265	230	300	15	4	265	265	183	315	463
132M	216	178	89	38	80	10	33	132	12	165	130	200	M10	3.5	265	230	300	15	4	265	265	183	315	501
160M	254	210	108	42	110	12	37	160	15	215	180	250	M12	4	300	250	350	19	5	310	320	223	383	606
160L	254	254	108	42	110	12	37	160	15	215	180	250	M12	4	300	250	350	19	5	310	320	223	383	650

Product Parameters
technical parameter

Model	Output		Full Load				75%load		50%load		Ist/TN	Tst/TN	Tmax/TN
	KW	HP	Current(A)	Speed(r/min)	Eff(%)	Power factor	Eff(%)	Power factor	Eff(%)	Power factor
380V 50Hz Synchronous Speed 3000r/min(2 poles)
MS56M1-2	0.09	0.12	0.30	2700	58.0	0.78	56.2	0.77	54.0	0.74	2.2	5.5	2.2
MS56M2-2	0.12	0.18	0.38	2700	60.0	0.79	58.5	0.78	56.0	0.75	2.2	5.5	2.2
MS63M1-2	0.18	0.25	0.53	2720	63.0	0.80	62.0	0.80	60.5	0.76	2.2	5.5	2.2
MS63M2-2	0.25	0.33	0.63	2720	65.0	0.81	64.0	0.80	62.5	0.77	2.2	5.5	2.2
MS71M1-2	0.37	0.50	0.99	2740	66.0	0.81	65.0	0.80	63.5	0.78	2.2	6.1	2.2
MS71M2-2	0.55	0.75	1.40	2740	71.0	0.82	70.0	0.82	68.5	0.79	2.2	6.1	2.3
MS80M1-2	0.75	1	1.83	2835	77.4	0.83	72.0	0.83	70.2	0.80	2.2	6.1	2.3
MS80M2-2	1.1	1.5	2.58	2835	79.6	0.84	75.1	0.83	73.0	0.80	2.2	7.0	2.3
MS90S-2	1.5	2	3.43	2845	81.3	0.84	77.0	0.85	70.0	0.81	2.2	7.0	2.3
MS90L-2	2.2	3	4.85	2845	83.2	0.85	80.0	0.85	78.0	0.84	2.2	7.0	2.3
MS100L-2	3.0	4	6.31	2875	84.6	0.87	81.0	0.86	79.3	0.86	2.2	7.0	2.3
MS112M-2	4.0	5.5	8.10	2895	85.8	0.88	83.5	0.87	81.0	0.84	2.2	7.5	2.3
MS132S1-2	5.5	7.5	11.0	2905	87.0	0.88	84.3	0.89	83.0	0.84	2.2	7.5	2.3
MS132S2-2	7.5	10	14.9	2905	88.1	0.88	85.9	0.87	83.7	0.84	2.2	7.5	2.3
MS160M1-2	11	15	21.3	2935	89.4	0.89	86.8	0.89	84.1	0.84	2.2	7.5	2.3
MS160M2-2	15	20	28.8	2935	90.3	0.89	88.0	0.89	86.4	0.85	2.2	7.5	2.3
MS160L-2	18.5	25	34.7	2935	90.9	0.90	89.0	0.88	86.8	0.86	2.2	7.5	2.3
380V 50Hz Synchronous Speed 1500/min(4poles)
MS56M1-4	0.06	0.08	0.26	1300	53.0	0.70	51.8	0.65	50.0	0.53	2.1	5.2	2.2
MS56M2-4	0.09	0.12	0.35	1300	55.0	0.71	53.8	0.67	52.0	0.55	2.1	5.2	2.2
MS63M1-4	0.12	0.18	0.42	1310	57.0	0.72	56.1	0.69	53.9	0.57	2.1	5.2	2.2
MS63M2-4	0.18	0.25	0.62	1310	60.0	0.73	58.5	0.70	56.7	0.59	2.1	5.2	2.2
MS71M1-4	0.25	0.33	0.79	1330	65.0	0.74	62.4	0.73	59.3	0.59	2.1	5.2	2.2
MS71M2-4	0.37	0.50	1.12	1330	67.0	0.75	65.3	0.74	60.8	0.63	2.1	5.2	2.2
MS80M1-4	0.55	0.75	1.57	1395	71.0	0.75	69.2	0.74	67.2	0.64	2.4	5.2	2.3
MS80M2-4	0.75	1.0	2.03	1395	79.6	0.76	71.7	0.75	69.8	0.67	2.3	6.0	2.3
MS90S-4	1.1	1.5	2.89	1405	81.4	0.77	73.1	0.75	70.8	0.67	2.3	6.0	2.3
MS90L-4	1.5	2	3.70	1405	82.8	0.79	76.1	0.76	73.7	0.69	2.3	6.0	2.3
MS100L1-4	2.2	3	5.16	1435	84.3	0.81	78.0	0.79	75.5	0.69	2.3	7.0	2.3
MS100L2-4	3.0	4	6.78	1435	85.5	0.82	79.9	0.78	77.5	0.70	2.3	7.0	2.3
MS112M-4	4.0	5.5	8.80	1445	86.6	0.82	81.9	0.79	79.6	0.70	2.3	7.0	2.3
MS132S-4	5.5	7.5	11.7	1445	87.7	0.83	82.8	0.81	80.4	0.73	2.3	7.0	2.3
MS132M-4	7	10	15.6	1445	88.7	0.84	84.8	0.82	82.6	0.74	2.3	7.0	2.3
MS160M-4	11	15	22.3	1465	89.8	0.84	85.8	0.83	83.8	0.75	2.2	7.0	2.3
MS160L-4	15	20	30.1	1465	90.6	0.85	90.0	0.83	88.5	0.75	2.2	7.5	2.3
380V 50Hz Synchronous Speed 1500/min(6 Poles)
MS71M1-6	0.18	0.25	0.74	850	56.0	0.66	54.6	0.66	53.0	0.65	1.9	4.0	2.0
MS71M2-6	0.25	0.33	0.95	850	59.0	0.68	57.5	0.68	56.1	0.62	1.9	4.0	2.0
MS80M1-6	0.35	0.50	1.30	895	62.0	0.70	60.5	0.69	59.1	0.64	1.9	4.7	2.0
MS80M2-6	0.55	0.75	1.79	895	65.0	0.72	63.3	0.71	60.1	0.64	1.9	4.7	2.1
MS90S-6	0.75	1	2.29	915	75.9	0.72	67.3	0.72	66.3	0.65	2.0	5.5	2.1
MS90L-6	1.1	1.5	3.18	915	78.1	0.73	70.2	0.72	38.0	0.66	2.0	5.5	2.2
MS100L-6	1.5	2	3.94	945	79.8	0.75	74.0	0.75	71.0	0.68	2.0	5.5	2.1
MS112M-6	2.2	3	5.60	945	81.8	0.75	77.1	0.77	75.1	0.69	2.0	6.5	2.1
MS132M1-6	3.0	4	7.40	965	83.3	0.76	78.9	0.77	76.1	0.69	2.1	6.5	2.1
MS132M2-6	4.0	5.5	9.80	965	84.6	0.76	80.0	0.76	77.5	0.70	2.1	6.5	2.1
MS160M-6	7.5	10	17.0	975	87.2	0.77	83.4	0.77	82.4	0.70	2.0	6.5	2.1
MS160L-6	11	15	24.2	975	88.7	0.78	86.6	0.78	84.8	0.72	2.0	6.5	2.1
380V 50Hz Synchronous Speed 750min(8 Poles)
MS80M1-8	0.18	0.25	0.88	630	51.0	0.61	47.9	0.52	44.6	0.54	1.8	4.0	1.9
MS80M2-8	0.25	0.33	1.15	640	54.0	0.61	48.9	0.54	45.3	0.55	1.8	4.0	1.9
MS90S-8	0.37	0.50	1.49	660	62.0	0.61	55.6	0.57	50.7	0.56	1.8	4.0	1.9
MS90L-8	0.55	0.75	2.18	660	63.0	0.61	55.9	0.58	50.9	0.59	1.8	4.0	2.0
MS100L1-8	0.75	1	2.17	690	71.0	0.67	60.9	0.65	59.7	0.56	1.8	4.0	2.0
MS100L2-8	1.1	1.5	2.39	690	73.0	0.69	72.0	0.61	59.8	0.57	1.8	4.0	2.0
MS112M-8	1.5	2	4.50	680	75.0	0.69	74.2	0.64	59.8	0.58	1.8	5.0	2.0
MS132S-8	2.2	3	6.00	710	78.0	0.71	77.2	0.61	60.1	0.58	1.8	6.0	2.0
MS132M-8	3.0	4	7.90	710	79.0	0.73	78.5	0.62	60.0	0.59	1.8	6.0	2.0
MS160M1-8	4.0	5.5	10.3	720	81.0	0.73	80.2	0.63	61.0	0.58	1.9	6.0	2.0
MS160M2-8	5.5	7.5	13.6	720	83.0	0.74	81.2	0.61	62.0	0.59	2.0	6.0	2.0
MS160L-8	7.5	10	17.8	720	85.5	0.75	84.5	0.63	65.9	0.59	2.0	6.0	2.0
