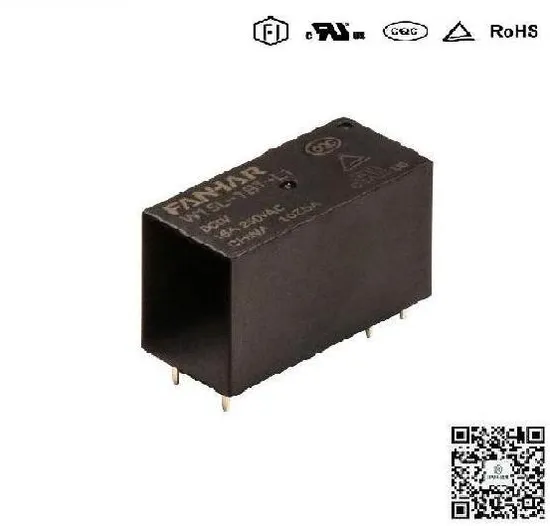

Latching Relay 20A for Smart Home, , Lighting Control
US$0.75-1.20
10 Pieces
(MOQ)
Basic Info.
Model NO.
W15L
Electricity Type
Dc
Load
High Power Relay
Protective Characteristics
Sealed Relay
Action Principle
Electromagnetic Type
Size
Subminiature
Type
Electric Parameter Relay
Certification
UL TUV CQC
Contact Material
Agsno2
Installation Type
PCB
UL Insulation Class
F
Operate Time
Max.15ms
Release Time
Max.15ms
Weight
15g
Transport Package
Export Carton
Specification
29*12.7*15.7(mm)
Trademark
Fanhar
Origin
China
HS Code
8536411000
Production Capacity
2500000-3000000PCS/Month
Product Description
Basic Info 20A switching capability Single coil and double coils are all available Products with operating temperature of 105ºC are available The contact can withstand 750A 10ms short-circuit impulse current The contact on and off can be controlled by the hand control switch Can provide the product meet the standard of IEC60335-1 UL insulation system:Class F Environment-friendly product(RoHS compliant) Outline Dimensions:(28.8×12.5×16.0)mm Main application:Smart home,Lighting control
