Stock Free Sample 304/310/321/316/316/317/904 Dutch Woven Stainless Steel Filter Wire Mesh Screen

Product Description

Welcome to YINRUN, your trusted premium Stainless steel wire mesh supplier! With a strong commitment to quality and longevity, we proudly offer a range of stainless steel wire mesh that redefine durability and excellence.Our stainless steel wire meshes are meticulously crafted using state-of-the-art manufacturing processes and the finest materials, ensuring a product that stands the test of time. Engineered to withstand the harshest elements, our stainless steel wire meshes boast remarkable resistance to corrosion, maintaining their integrity and performance even in the most challenging environments.Stainless steel wire mesh screen
Stainless steel wire mesh Screen is a versatile and durable material used in various industrial, commercial, and residential applications.
Our screen is manufactured using most advanced weaving techniques, resulting in a high precision with uniform openings that can range from fine to coarse, depending on the intended use.
Stainless steel wire mesh screen finds widespread use in filtration, sieving, fencing, reinforcement, and decorative purposes due to its excellent mechanical properties and resistance to harsh environments.
Material
It is typically made from alloys such as 201,304, 316, 316L,430,904L which offer high corrosion resistance, strength, and longevity.
We also have rich experience in customizing rare material woven wire mesh for special requirements which include Monel 400 wire, Molybdenum wire, Hastelloy alloy wire, Nickel wire and Biphasic alloy wire.
Application of stainless steel wire mesh screen
Filtration and Separation
Screening and Sieving
Architecture and Decoration
Heat and Radiation Shielding
EMI and RF Shielding
Conveyor Belts and Industrial Processes
Crafts and DIY Projects
Medical and Laboratory
WHY CHOOSE US
Experienced Stuff
YINRUN was found in early 1990s. With 30+ years developing, now we have 3000 m2 workshop and 5000 m2 warehouse, more than 100 technicals,20+ production lines.
Strict quality control system
We have a team specially for quality control/inspection/testing. The quality from us is top class.
In-time service
7X24 online service from experienced sales team.
Perfect after sale service
For quality problems cause by us, we provide replacement or return. And we don't play disappear when problems occur. We offer multiple solutions to our clients.Sepcification Chart of stainless steel wire mesh screen

Mesh count	Diameter(mm)	Opening mm	Opening rate
2	1.8	10.9	74%
2	1.6	11.1	76%
2	1.4	11.3	79%
3	2	6.467	58%
3	1.8	6.667	62%
3	1.6	6.867	66%
3	1.4	7.067	70%
4	2	4.35	47%
4	1.8	4.55	51%
4	1.6	4.75	56%
4	1.4	4.95	61%
4	1.2	5.1	65%
4	1	5.35	71%
4	0.9	5.45	74%
5	1.2	3.83	57%
5	1	4.08	65%
6	1.6	2.633	39%
6	1.4	2.833	45%
6	1.2	3.033	51%
6	1	3.233	58%
6	0.9	3.333	62%
6	0.8	3.433	66%
6	0.71	3.523	69%
8	1.25	1.925	37%
8	1.12	2.055	42%
8	1	2.175	47%
8	0.9	2.275	51%
8	0.8	2.375	56%
8	0.71	2.465	60%
8	0.63	2.545	64%
8	0.56	2.615	68%
10	0.9	1.64	42%
10	0.8	1.74	47%
10	0.71	1.83	52%
10	0.63	1.91	57%
10	0.56	1.98	61%
10	0.5	2.04	65%
12	0.8	1.317	39%
12	0.71	1.407	44%
12	0.63	1.487	49%
12	0.56	1.557	54%
12	0.5	1.617	58%
12	0.45	1.667	62%
14	0.56	1.254	48%
14	0.5	1.314	52%
14	0.45	1.364	57%
14	0.4	1.414	61%
14	0.355	1.459	65%
14	0.315	1.499	68%
16	0.63	0.958	36%
16	0.56	1.028	42%
16	0.5	1.088	47%
16	0.45	1.138	51%
16	0.4	1.188	56%
16	0.355	1.233	60%
16	0.315	1.273	64%
18	0.236	1.175	83%
20	0.56	0.71	31%
20	0.5	0.77	37%
20	0.45	0.82	42%
20	0.4	0.87	47%
20	0.355	0.915	52%
20	0.315	0.955	57%
24	0.45	0.608	33%
24	0.355	0.703	44%
24	0.315	0.743	49%
28	0.355	0.552	37%
28	0.315	0.592	43%
30	0.355	0.492	34%
30	0.315	0.532	39%
30	0.28	0.567	45%
30	0.25	0.597	50%
30	0.224	0.623	54%
36	0.25	0.456	42%
36	0.224	0.482	47%
36	0.212	0.494	49%
40	0.224	0.411	42%
40	0.212	0.435	47%
40	0.19	0.445	49%
40	0.132	0.503	79%
50	0.21	0.298	34%
50	0.2	0.308	37%
50	0.19	0.318	39%
50	0.16	0.348	47%
50	0.15	0.358	50%
60	0.18	0.243	33%
60	0.16	0.263	39%
60	0.14	0.283	45%
70	0.15	0.213	34%
70	0.14	0.223	38%
70	0.125	0.238	43%
80	0.14	0.178	31%
80	0.125	0.193	37%
100	0.112	0.142	31%
100	0.1	0.154	37%
100	0.09	0.164	42%
100	0.08	0.174	47%
120	0.09	0.122	33%
120	0.08	0.132	39%
120	0.065	0.147	48%
140	0.08	0.101	31%
150	0.071	0.098	34%
150	0.065	0.109	42%
165	0.05	0.104	46%
180	0.06	0.081	33%
180	0.05	0.091	42%
200	0.05	0.077	37%
200	0.04	0.087	47%
230	0.036	0.074	45%
250	0.04	0.062	37%
270	0.04	0.054	33%
270	0.036	0.058	38%
300*	0.04	0.045	28%
300*	0.036	0.055	42%
325*	0.036	0.042	29%
325	0.028	0.05	41%
350*	0.03	0.043	34%
400*	0.03	0.034	27%
500*	0.025	0.026	26%

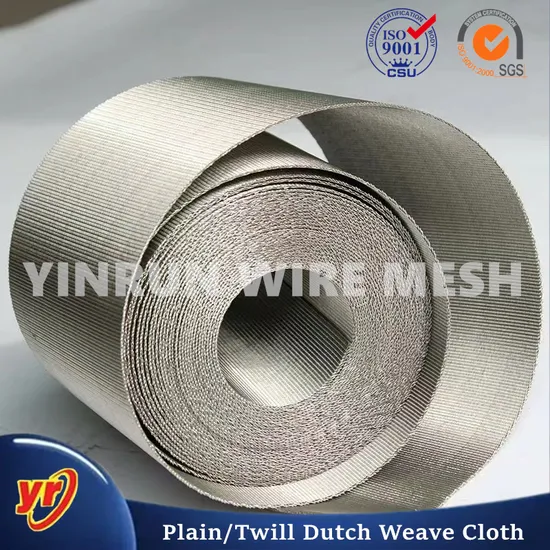

Mesh count	Diameter				Weaving pattern
	Wrap		Weft
	Inch	mm	Inch	mm
12x64	0.023	0.58	0.0165	0.42	Plain Dutch Weave
14x88	0.019	0.48	0.012	0.30	Plain Dutch Weave
14x110	0.016	0.40	0.011	0.28	Plain Dutch Weave
24x110	0.014	0.355	0.010	0.25	Plain Dutch Weave
16X200	0.014	0.355	0.010	0.25	Twill Dutch Weave
30X150	0.009	0.23	0.007	0.18	Plain Dutch Weave
20X200	0.0135	0.34	0.011	0.28	Plain Dutch Weave
40X200	0.007	0.18	0.0055	0.14	Plain Dutch Weave
20X300	0.010	0.25	0.007	0.18	Twill Dutch Weave
30X250	0.010	0.25	0.008	0.20	Twill Dutch Weave
20X350	0.010	0.25	0.006	0.15	Twill Dutch Weave
20X250	0.010	0.25	0.0082	0.21	Twill Dutch Weave
50X600	0.007	0.18	0.0035	0.09	Twill Dutch Weave
28X400	0.007	0.18	0.005	0.13	Twill Dutch Weave
50X250	0.0055	0.14	0.0045	0.11	Plain Dutch Weave
28X500	0.007	0.18	0.0045	0.11	Twill Dutch Weave
50X700	0.0055	0.14	0.003	0.076	Twill Dutch Weave
80X700	0.004	0.10	0.003	0.076	Twill Dutch Weave
100X1000	0.004	0.10	0.002	0.051	Twill Dutch Weave
165X800	0.0028	0.071	0.002	0.05	Twill Dutch Weave
165X1400	0.0028	0.071	0.0016	0.04	Twill Dutch Weave

---
