High Speed PE Corrugated Pipe Extrusion Making Machine

US$20,000.00-50,000.00 1 Set (MOQ)

Basic Info.

Model NO.

SJ45

Automation

Automatic

Computerized

Customized

Condition

New

Suitable Material

PE, PP Granules

Application

Water Supply Pipe, Electrical Pipe

Pipe Range

16-63mm

Screw Diameter

45mm, 51mm, 65mm, 80mm, 92mm

Screw Type

Single Screw

Main Motor

Siemens Beide

Contactor

Schneider

Inverter

ABB/Jarol

Temperature

Omron

Machine Name

Single Wall Corrugated Pipe Hose Extrusion Product

Transport Package

Standard Export Package

Specification

16-63mm

Trademark

BORUN

Origin

China

HS Code

84778000

Production Capacity

100PCS/Year

Product Description

High Speed PE Corrugated Pipe Extrusion Making Machine

Description:

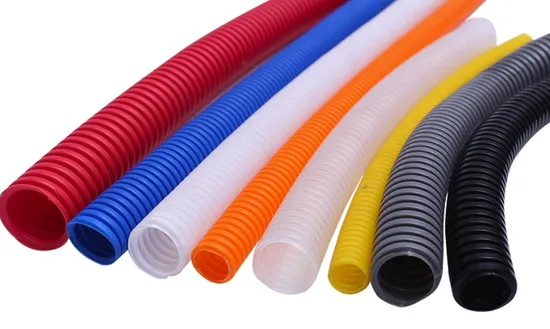

The plastic corrugated pipe extrusion line is used to produce small diameter single wall corrugated pipes of PE, PP, PVC as raw material. The molding corrugated pipe with smooth inside and outside surface, it is ripple at one time by corresponding die. The corrugated pipes and hoses are widely used in electrical cable pipe, washing machine drainage pipe, dust collector pipe and ventilation pipe, etc.
Application:
Technical parameters:

Model	Die Block(couple)	Production Pipe Range (mm)	Production Speed(m/min)	Output (kg/h)
XS-25	44	8-25	4-10	8
XS-32	44	16-32	2-7	30
XS-63	44	20-63	1-6	60

Spare part list (free of charge)

No.	Name	Qty.	Application
Machinery part:
1	Oil seal	1 pc.	Gearbox high-speed shaft
2	Screw unload tools	1 set	Unload screw
3	Sprayer	30 pcs.	Vacuum tank and spray tank
4	Seal	5m	Vacuum tank and spray tank
5	Rubber block	20pcs.	Haul-off
6	Air pipe	5m	Cutter
7	Saw	2pcs	Cutter
8	Heating pipe	5pcs	Belling machine
Electrical part:
1	Thermocouple(3m)	4pcs.	Extruder
2	Temperature control	2pcs	Extruder
3	Small AC contactor	5pc	Electric cabinet
4	Small circuit breaker	2pc
5	Potentiometer	2pc

Production Line Details:
Exprienced Techinicians:
BORUN MACHINERY WORKSHOP:
Contact Us:
Ms. Carolyn Zhou
