High-Rising Passenger Cargo Lift Building Construction Hoist with CE Certificate

Product Description

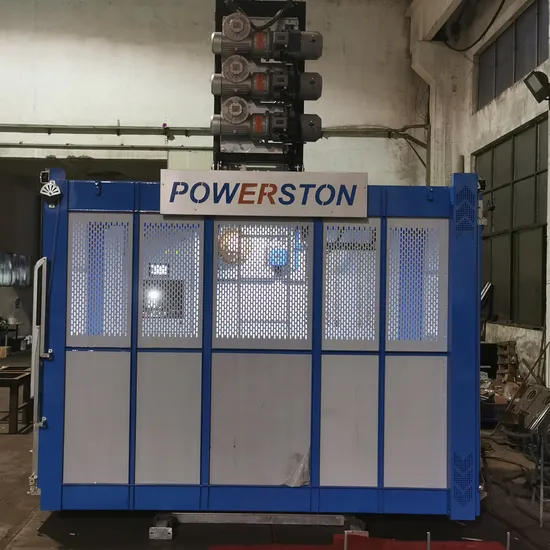

Construction hoist is composed of lifting cage, drive mechanism, mast section, wall-attached frame, foundation, fence, electric system etc. It is an ideal machinery for carrying people and cargo that is often used together with tower crane in building construction. It is safe and high efficiency, smooth and steady in transmission, low noise, lifting speed can be easily controlled, simply to operate.
The load capacity can be as much as 4000kg, the lifting speed can be reach up to 96m/min, and the erection height can reach up to 450m, besides the normal type, we also design and manufacture special hoists for different building, such as slope, twin mast, large tonnage and small size industrial building hoist and so on.
With the frequency inverter set, the lifting speed can be easily controlled from 36m/min to 96m/min. The hoist can be one cage or double cage as you need, standard cage size is 3m in length, 1.3m in width, 2.5m in height, also the cage size and color can be customized. Lifting height can be 30m to 450m. The mast section can be steel painting or hot dipping zinc.

Parameters:

Model Low speed	SC100TD		SC200TD		SC270TD	SC320TD
Rated load (per cage)	1000kg		2000kg		2700kg	3200kg
Lifting speed	36m/min		36m/min		36m/min	36m/min
Cage diamension	3.0m(L)*1.3m(W)*2.5m(H) or customized
Motor power	2*11kw 2*2*11kw		3*11kw 2*3*11kw		3*15kw 2*3*15kw	3*18.5kw 2*3*18.5kw
Mast section	650mm(L)*650mm(W)*1508mm(H)
Lifting height	100M
Cage	Single/ Double

Model Medium speed	SC100GZ		SC200GZ		SC270GZ	SC320GZ
Rated load (per cage)	1000kg		2000kg		2700kg	3200kg
Lifting speed	0-63m/min		0-63m/min		0-63m/min	0-63m/min
Cage diamension	3.0m(L)*1.3m(W)*2.5m(H) or customized
Motor power	2*15kw		3*18.5kw 2*3*15kw		3*22kw 2*3*18.5kw	2*3*22kw
Mast section	650mm(L)*650mm(W)*1508mm(H)
Lifting height	100M
Cage	Single		Single/ Double	Single/ Double		Double

Model High speed	SC100G		SC200G
Rated load (per cage)	1000kg		2000kg
Lifting speed	0-96m/min		0-96m/min
Cage diamension	3.0m(L)*1.3m(W)*2.5m(H) or customized
Motor power	2*2*22kw		2*2*22kw
Mast section	650mm(L)*650mm(W)*1508mm(H)
Lifting height	100M
Cage	Double

---
