5.5/6.5/7HP Small Petrol Power Engine Air Cooled Single Cylinder 4 Stroke Horizontal Shaft Gasoline Motor Engine

Product Description

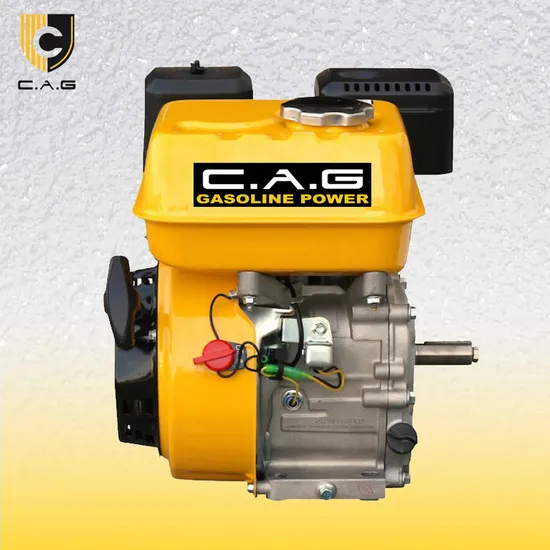

C.A.G Small Petrol engine Their overhead valve design runs cooler and cleaner to deliver more power. The fuel-efficient operation, and cast iron cylinder sleeve and dual ball bearing crankshafts provide longer service life. C.A.G's horizontal shaft engine delivers reliable power, easy starting, and quiet running performance. The general-purpose engine is ideal for the demands of power sources like a portable generator, water pumps, pressure washers, compressors, and other outdoor power equipment. Detailed Photos

Data for CAG Gasoline Engine
Model & HP	TG90(2.6HP)	TG100(3.0HP)	TG160(5.5HP)	TG200(6.5HP)	TG210(7HP)	TG270(9HP)	TG390(13HP)	TG420(15HP)	TG440(16HP)
Engine type	Air-cooled, 4-stroke, OHV, single cylinder
Bore× Stroke	54x38mm	56x38mm	68x45mm	68x54mm	70x56mm	77x58mm	88x64mm	90x66mm	92x69mm
Displacement	87cc	93cc	163cc	196cc	212cc	270cc	389cc	420cc	438cc
Compression ratio	8.5: 1	8.5: 1	8.5: 1	8.5: 1	8.5: 1	8.2: 1	8.0: 1	8.0: 1	8.0: 1
Starting system	Recoil	Recoil	Recoil	Recoil	Recoil	Recoil	Recoil	Recoil	Recoil
Speed	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm
Max output(kW/3600rpm)	2.6HP	3.0HP	5.5HP	6.5HP	7.0HP	9HP	13HP	15HP	16HP
Rated output(kW/3600rpm)	1.7	1.9	2.94	3.68	3.82	5.2	7.35	7.8	7.9
Torque	4.2N.m/2500rpm	4.4N.m/2500rpm	10.8N. m/2500rpm	13N. m/2500rpm	14N. m/2500rpm	19N. m/2500rpm	26.4N. m/2500rpm	28N. m/2500rpm	28N. m/2500rpm
Fuel consumption	450g/kW. h	450g/kW. h	395g/kW. h	395g/kW. h	395g/kW. h	374g/kW. h	374g/kW. h	370g/kW. h	370g/kW. h
Fuel tank capacity	1.6L	1.6L	3.6L	3.6L	3.6L	6L	6.5L	6.5L	6.5L
Oil capacity	0.37L	0.37L	0.6L	0.6L	0.6L	1.1L	1.1L	1.1L	1.1L
N. W. /G. W.	10/10.5kg	10/10.5kg	15/16.5kg	16/17.5kg	16/17.5kg	26/28kg	31/33kg	32/34kg	32/34kg
Dimension	340x290x340mm	340x290x340mm	387x330x365mm	387x330x365mm	387x330x365mm	465x380x450mm	490x400x480mm	490x400x480mm	490x400x480mm
PTO shaft rotation	Counterclockwise(from PTO shaft side)
Optional	N/A	N/A	Electric start, PTO shaft, air cleaner

• An efficient air cleaner system
• Compact in structure and small in size
• Multi-choice PTO shafts(keyway shaft, thread shaft and taper shaft)
• Recoil or electric start, with oil bath air filter
• Overhead valve (OHV) design, lower operation temperature, powerful drive and reliability and durability, and it saves more oil.
• Cast iron casing does not only effectively improve lubrication but also makes the engine more wear-resistant and prolongs engine life.
• Automatic alarm and stop at a low oil level, which prevents the engine to work at low oil level and gives more protection to the engine.
• Metal cam and forged crankshaft make the engine more reliable and durable.

---
