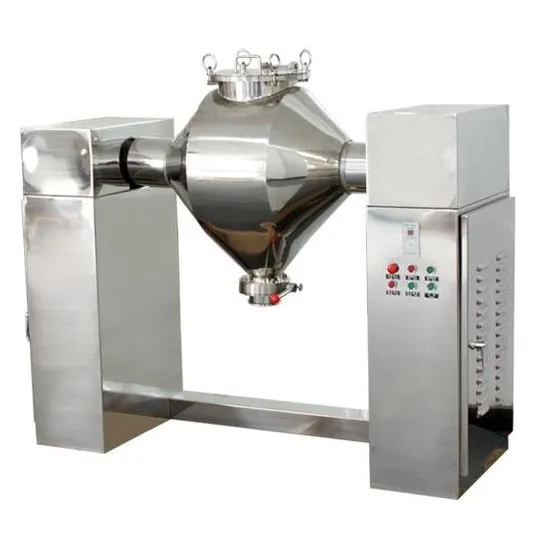

Cw-2500 Stirring Double Cone Mixing Machine

Product Description

Cw-2500 Stirring Double Cone Mixing Machine
Model CW-2500
Barrel Volume(L) 2500
Mixing motor 11
Stirring motor 5.5
Mixing rotary speed (rpm/min) 6
Stirring rotary speed(rpm/min) 20
Overall dimension 3600*1400*3200
Features:
This machine can rapidly mix such materials as easy clot and with certain water content, having fast mixing speed and good mixing effect. Inner of this machine is of new type sealing structure, during mixing, it is free of pollution, with simple structure and convenient operation and maintenance.

Main Application:
Our company develops CW series stirring mixer under absorption of foreign new technology, based on W series double cone mixer, this machine adds stirring unit, which can be used for material mixing in industries as pharmacy, foodstuff, chemical industries as pharmacy, foodstuff, chemical industry and feedstuff etc.

Technical Parameter:

Model	Barrel Volume(L)	Mixing motor	Stirring motor	Mixing rotary speed (rpm/min)	Stirring rotary speed(rpm/min)	Overall dimension
CW-50	50	1.1	0.75	20	60	1500*450*1200
CW-100	100	1.5	1.1	20	60	1550*550*13500
CW-200	200	2.2	1.1	20	60	1800*700*1500
CW-300	300	2.2	1.1	20	60	2100*760*1760
CW-500	500	3	2.2	20	60	2320*950*1920
CW-1000	1000	5.5	2.2	10	40	2450*1050*2500
CW-1500	1500	7.5	4	10	40	2900*1300*2700
CW-2000	2000	7.5	4	8	30	3000*1400*3100
CW-2500	2500	11	5.5	6	20	3600*1400*3200
CW-3000	3000	11	5.5	6	20	4000*1500*3500
CW-4000	4000	15	5.5	6	20	4800×1300×3800
CW-5000	5000	15	7.5	5	20	5400×1300×4000
CW-6000	6000	17.5	7.5	5	20	5650×1300×4380

---
