Panel Lift -Drywall Lifter with Winch Haredware Tools

Product Description

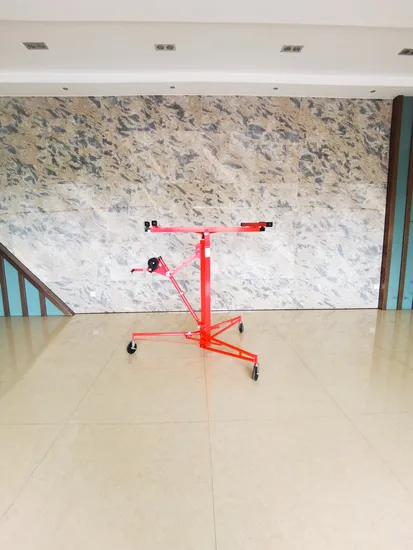

Panel lift
Panel Hoist-board lifter -drywall lifter
Maximum load: 68kg
Plate support tilt 60 and swivel360 horizontally; Automatic brake
Plate support expandable with3 positions
Extensions retracted
Spacing of 54 CM
Spacing of 84 CM
Load Height: 93.5 CM
Max working height: 3.35 M (when you want to get about 4.7M height, you should use one 6ft extension bar to replace the 4ft in the body)
Minimum working height: 1.35m
Arm length: 90CM + support hook
Maximum opening of xtensions: 2.92M
Minimum opening of extensions: 1.25 M
3 wheels for steering 10CM (4")in diameter with brake
OR 5" (12.5CM)
NET Weight: 39KGS, GROSS WEIGHT: 41KGS Drywall and panel hoist, Drywall lifter, Panel lift hoist - CE


Load Capacity: 68kg
Self-Inspection for each pc before Packing!!! (see the following photos.)



Product details:
Maximum load : 68kg
Plate support tilt 60 and swivel 360 horizontally; automatic brake
Plate support expandable with 3 positions
Extensions retracted
spacing of 54 CM
spacing of 84 CM
Load Height: 93.5 CM
Max working height: 3.35 M (when you want to get about 4.7M you should use one 6ft extension bar to replace the 4ft in the body)
Minimum working height: 1.35m
Arm length: 90CM + support hook
Maximum opening of xtensions:2.90M
Minimum opening of extensions: 1.22 M
3 wheels for steering 10CM (4")in diameter with brake OR 5" (12.5CM)
NET Weight: 39KGS, GROSS WEIGHT:41KGS


A: Detail photos:

SELF-INSPECTION BEFORE PACKING FOR EACH PC. (use 68kg sandbag)

function test , lifting the panel up to 3.3 5M or 4.8M

Loading 68KGS

one pc/time

B: Advantage:

As for the good quality and competitive price, our products are popular in the world; especially exports to the American and European market, East-southern district, and so on.



1) Competitive Price

2) Excellent Service

3) Timely Delivery

4) To strictly control the standards of quality of manufactured goods

5) Sample is available


C Terms and shipment:

1) Loading Port: Ningbo

2) Payment Term: By T/T: 30% deposit in advance + balance against B/L copy.or L/C at sight

3) Sample lead time: within 5 - 7 days after all detailed has been approved.

4) Delivery date: Within 35 days after got the deposit money.

5) OEM is ok







We are the manufactory of drywall and panel hoist for more than ten years, and keep the best price and quality in the market~!

More informations,please feel free contact us~!

---
