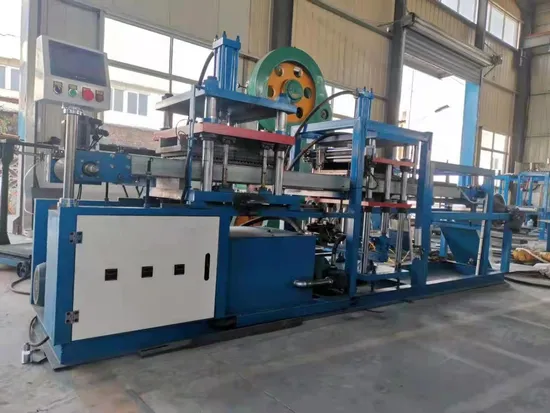

Pet PVC PS Seedling Tray Nursery Flower Pot Plant Growth Tray Making Machine

Product Description

Feature:
It is suitable to form HIPS, PS, PVC and PET plastic sheets etc., which can produce various of seeds tray, flower pot etc.
Design Features:
Microprocessor-based control system (PLC)
High speed forming air
Multi zone heating controller through solid state relay
High quality lapped spool valves for all control functions
Automatic unwind and rewind equipment for material and web
Heating plate is moving, mould is un-moving.
Low air consumption
Low maintenance
Technical Parameter:

1. Forming Area	390X600mm
2. Forming Depth	100mm
3. Sheet Width	390mm
4. Sheet Thickness Range	0.15-1.0mm
5. Max.Sheet Roller Diameter	710mm
7. Water Consumption	10Liters/min(15-25 C)
8. Air Consumption	1200 Liters/min
9. Speed	15-25 Cycles/min
10. Power	Three-phase four-wire AC380v+-15v

Our Services:
Warranty: 1year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free. Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer. Quotation: valid for 60days. Packaging Shipping:
Company Information:
Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.

---
