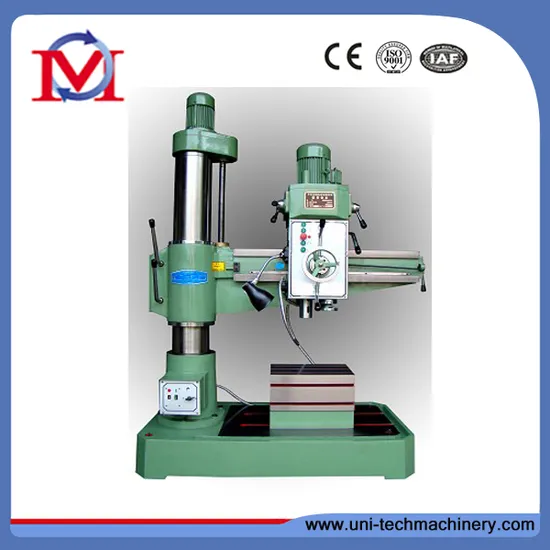

Universal Radial Drilling Machine (Z3035X10)

US$2,000.00-3,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

Z3050X10

Structure

Radial Drilling Machine

Layout

Vertical

Controlling Mode

Artificial

Number of Shaft

None

Hole Diameter

<50mm

Automatic Grade

Manual

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Max Drilling Capacity (mm)

Cast Iron 35/Steel 32

Spindle Feeds (mm)

0.1, 0.16, 0.25

Spindle Taper (mm)

Mt4

Spindle Speeds Steps (mm)

Spindle Travel(mm)

250-950mm

Material

Tungsten Carbide

Use

Metal Drilling

Spindle Feeds

0.1,0.16,0.25mm

Power of Main Motor

1.5/2.2kw

Weight of Machine

1100kgs

Transport Package

Wood Case/Plywood Case

Specification

CE, ISO9001

Trademark

UNI-TECH

Origin

China

HS Code

84595900

Production Capacity

100sets/Month

Product Description

Universal radial drilling machine (Z3035X10)
Main Features:
1.Optimum design conforming to international standard.
2.Key precisely machined parts precision machining
3.Flexible reliable; Perfect feature.
4.High precision, High strength.
5.Economical cutting and Long life.
6.Functions: Drilling; counter boring; reaming; boring; spotting; tapping.
7.With comatic automatic ascent and descent
8.With confident construction.
9.With mechanical gear change, convenient to operate.

Mechanical transmission
Mechanical clamping
Mechanical changing speed
Automatic take off and land
Automatic feed

With standard accessories:
Box shape worktable, Taper sleeve, Tool releasing wrench, Drift, Eyelet bolts.

Optional accessories:
Quick instead chuck, Tapping chuck, Grease gun.
operations:

Model	Z3035×10
Code No.	402004
Max drilling capacity mm	Cast Iron 35/Steel 32
Spindle feeds mm	0.1,0.16,0.25
Spindle taper	MT4
Spindle speeds steps mm	6
Distance spindle axis to column generating line mm	250-950
Distance spindle nose to working surface of base mm	340-1000
Spindle travel mm	190
Overall size mm	1530×700×2100
Power of main motor Kw	1.5/2.2
Motor power Kw	2.2/0.75
Weight of machine Kgs	1100
