Semi Auto Mute Automatic Terminal Crimping Machine Auto Cable Lug Crimping Machine

Product Description

Semi Mute Automatic Terminal Crimping Machine Auto Cable Lug Crimping Machine

Product Description

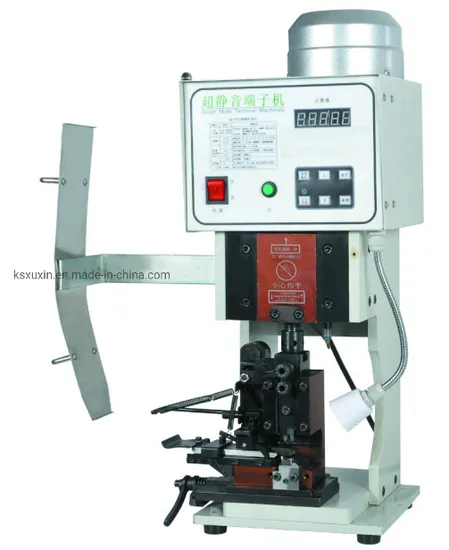

Semi-automatic 2t terminal crimping machine auto cable lug crimping machine
The semi-auto mute terminal crimping machine is suitable for crimping computer terminal, DC terminal, AC terminal, single grain terminal, and joint terminal. It is compatible with vertical and horizontal molds, and one machine is suitable for all terminal types by replacing the crimping molds.

Model	X-1.5T	X-2.0T	X-3.0T	X-4.0T	X-6.0T	X-8.0T
Output	1.5Ton	2.0Ton	3.0Ton	4.0Ton	6.0Ton	8.0Ton
Nominal Pressure	1500KG	2000KG	3000KG	4000KG	6000KG	8000KG
Frequency Power	550W	750W	1100W	2200W	2500W	3000W
Motor Power	550W	750W	1100W	1500W	2000W	3000W
Stroke	30mm (40mm is customizable)
Power Supply	220V/50Hz, 110V/60Hz
Net Weight (KG)	38	55	55	96	110	169
Dimensions (MM)	220*250*600	240*270*650	270*260*640	310*210*750	350*260*780	380*310*850

Detailed Photos
It can apply terminal model

Company Profile
Our Advantages
After Sales Service We Provide

Best products and factory price. On-time delivery and the shortest delivery time. 1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery. OEM and customized service. User manuals will go with relative machines.
Service

QC: All products will be checked before delivery. Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers. Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance. Operation Guidance: If you have any problem with operation, please feel free to contact us.

---
