Chinese 16m Hydraulic Articulated Lift Mobile Elevating Aerial Work Platform Xga16

Product Description

Product Description

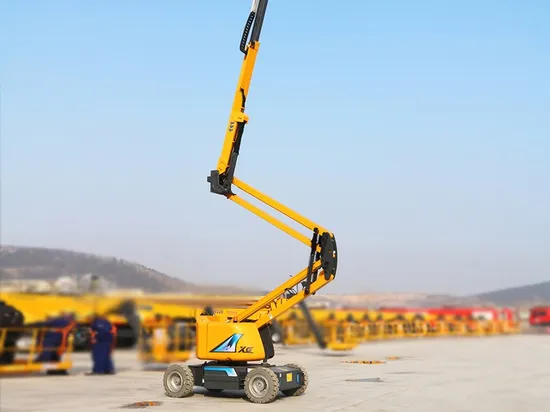

16m Hydraulic Articulated Lift Mobile Aerial Work Platform XGA16
16M articulated mobile elevating work platform aiming to satisfy customers' requirements. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety.
Advantages and highlights:
* Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles; the platform can turn 160°, creating a wider operation area; compact and narrow turntable eliminates tail swing and improves operation efficiency;

* Off-road chassis, 4W drive system, solid off-road wide tire, full-time axle balance system, 38kw power, excellent adaptation to any terrain. Work platform is enable to extend out, enlarging the work space, together with the foldable fence making the transportation easier.

* Full - range work; direct and friendly control panel easy to control; precise and effective electric-hydraulic proportional system Chassis tilting protection, platform overloading warning, emergent lowering, safety speed limit, flexible start/stop technologies.
Product Parameters

Item	XGA16
Parameters of traveling state
Overall dimensions (L × W × H)	6.69×2.26×2.13 m
Working platform overall dimensions	1.83×0.76×1.15 m
Max. speed	6.12 km/h
Max. gradeability	≥30%(2WD) ≥45%(4WD)
Min. external turning radius	≤4.5m
Ground clearance/m (centre)	0.41 m
Wheelbase	2.1 m
Total mass	6900 kg
Main Operation Performance Parameters
Rated working height	16.05m
Max. platform height	14.05m
Max. working range	8.22m
Scope of luffing of No. 1 arm	0°~60°
Scope of luffing of No. 2 arm	-9°~75°
Slewing angle	355° discontinuous slewing
Slewing radius of turntable	1.145 m
Max. Load capacity	230 kg
Working speed
Platform lifting/lowering speed	0.1~0.3m/ s
Extending/Retracting speed of Boom No.2	0.1~0.3m/ s
Slewing speed	0.5~1r/min
