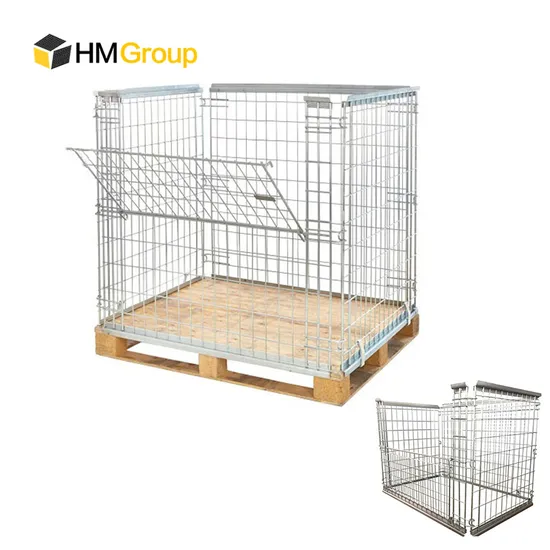

Folding Welded Steel Wire Mesh Pallet Cage with Wooden Pallet

Product Description

Different designs of wire mesh pallet cage
Specification of pallet cage with wooden pallet

Same design, different sizes
Model No.	Exterior Dimension	Interior High	Wire Guage	Grid Size	Loading Capacity	Loaded in 1x40'GP
	LxWxH(mm)	mm	mm	mm	kg	sets
HM-CP001	1200x800x1000	850	¢5-¢12	60x103	800	480
HM-CP002	1000x1200x1450	1300	¢5-¢10	60x105	1000	280
HM-CP003	1200x1000x1200	1200	¢5-¢10	60x105	800	460
HM-CP004	1200x1000x1000	1000	¢5-¢10	60x105	800	480
HM-CP005	1200x800x1000	1000	¢5-¢10	60x105	800	480
Material	Mild steel Q235
Application area	Warehouse, logistic, mass retail, recycling industry, etc.
Finish	Zinc/hot dip galvanized/powder coating
Remark	Customized or OEM support
Main Features	1.Collapsible-save space when not in use,ideal for return journeys 2.Bright electro zinc plated finish 3.Standard half-hinged gate access 4.Long lasting,economical alternative to disposable packing 5.Open wire mesh design allows for full visibility for inventory checks,ventilation and cleaness. 6.Four-way entry for easy use with lift trucks

Folding welded steel wire mesh pallet cage with wooden pallet
Compatible with Euro pallets, one-piece units fold for storage, half drop mesh gate for products access,
available interior height - 850mm, 1000mm, 1200mm, etc
Benifits and desings of welded steel wire mesh pallet cage
Application and packaging of folding steel wire mesh pallet cage
FAQ
1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion-resistant zinc(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical material
(for zinc plated and powder coated products, no limitation for hot dip galvanized)

---
