Manufacturer Stainless Steel Custom Precision Sheet Metal Part Stamping

Product Description

Product Description Photovoltaic roof hooks are important accessories used to install solar photovoltaic modules on rooftops. Their main function is to fix photovoltaic brackets or rails, thereby ensuring that solar photovoltaic panels can be stably installed on the roof to fully receive sunlight and achieve photovoltaic power generation.

Materials
Stainless Steel: It has good corrosion resistance and strength, can adapt to various harsh outdoor environments, and has a long service life. It is one of the commonly used materials for photovoltaic roof hooks. Aluminum Alloy: It is lightweight, high-strength, easy to install and transport, and also has good weather resistance and antioxidant properties. It is also a common material choice. Hot-Dip Galvanized Steel: Through hot-dip galvanizing treatment, a dense zinc coating is formed on the surface of the steel, which can effectively improve the corrosion resistance of the steel and enhance the durability of the hook.
Product Parameters

Length Specifications	Commonly seen are 80mm, 100mm, 120mm, 150mm, 200mm, etc. Appropriate lengths can be selected according to different roof structures and photovoltaic module installation requirements
Width Specifications	Generally between 25mm and 80mm. Narrower hooks can be flexibly installed on special-shaped or small-spacing tile roofs; wider hooks have better stability and load-bearing capacity, suitable for large and heavy photovoltaic modules
Thickness Specifications	Ranging from 1.2mm to 4mm. Thinner hooks are suitable for light photovoltaic systems; thicker hooks are used for installing large-capacity, high-weight photovoltaic modules or in harsh environments
Shapes	Commonly seen are L-shaped, Z-shaped, etc
Adjustment Functions	Some hooks are equipped with slotted holes, adjustment teeth, or angle adjustment devices, etc., which can achieve fine-tuning in the horizontal direction, height or angle adjustment. The angle adjustment range is generally between 0° and 30° to adapt to different roof slopes and photovoltaic module installation angles

Product Advantages
Strong Universality: It can be applied to various types of roofs, such as sloping tile roofs, glazed tile roofs, color steel tile roofs, cement flat roofs, etc., meeting the installation requirements of different roof structures. Convenient Installation: Bolt connection is adopted, without the need for drilling and welding, which is fast and time-saving. Moreover, it is not necessary to penetrate the tile surface during installation, ensuring the waterproof performance of the roof and maintaining the aesthetics of the roof. Flexible Adjustment: The length, position, and angle of the hook can be adjusted, which can better adapt to various complex roof conditions and different specifications of photovoltaic modules, improving the installation efficiency and system stability.
Application
Residential Building
Industrial Plant
Commercial Building
Agricultural Facilities

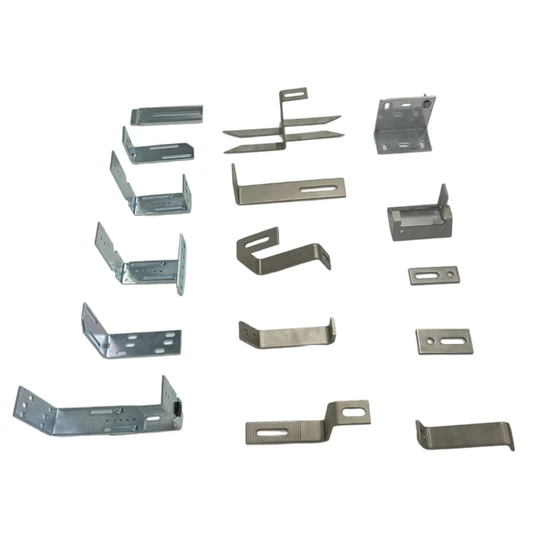

Detailed Photos

---
