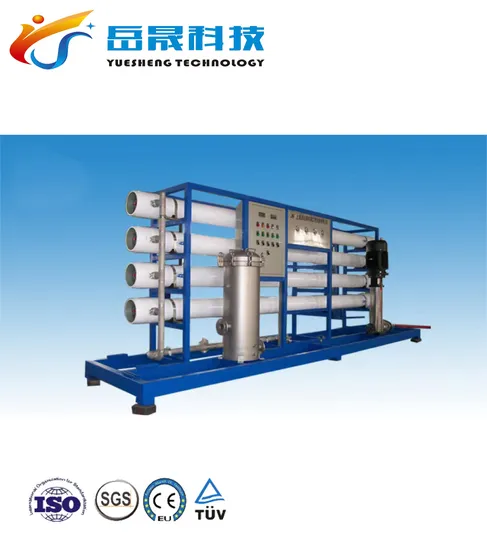

Ushine New RO Purification System Reverse Osmosis Water Treatment Machine

Product Description

Product Description
Water treatment system is used in Mineral water and other bottled water, Our water treatment systems feature high quality fabrication and components.Utilizing new and improved technologies increases efficiency and output of the systems, while reducing environmental impact.
RO System Water TreatmentIt can be used in various commercial fluids, including drinking water, carbonated beverages, juice, tea and alcohols.
(1)Raw water→ Raw water tank→Raw water pump
(2)Quartz sand filter→ Activated carbon filter→Sodium-ion exchanger→Ultra filter
(3)High pressure pump Reverse Osmosis
(4)Qzone sterilizer→ Pure water tank.
Raw water pump: connect to raw water,we supplier the best supplier Nanfang pump .Silica sand filter: Silica sand as a filter medium can intercept and remove suspended matter effectively, organicmatter, colloidal particles, microorganisms, chlorine, odor and some heavy metal ions in water under certain pressure,so as to reduce water turbidity.Active carbon filter: It can filter chlorine content in water: <0.1PPM, and has significant effect on odor, organicmatter, colloid and iron in water. It can also reduce turbidity, chroma of water, purify water quality and reduce pollutionto follow-up systems (reverse osmosis, ultrafiltration, ion exchanger).Sodium ion exchanger: Sodium ion exchanger (softener) is used to remove calcium and magnesium ions fromwater. When calcium and magnesium ions in water are exchanged by sodium ion, carbonate scale and sulfate scaleare not easily formed in water, thus softening water can be obtained.Precision filter: It adopts PP filter membranes which has high filtering precision, less than 0.1um particles, strongability of intercepting pollution and long service life.Reverse osmosis: it is composed of reverse osmosis membrane (RO), high pressure pump and washing systemto protect the reverse osmosis membrane. It can intercept substances larger than 0.0001 micron. It is the finestwater filter. It can effectively intercept all dissolved salts and organic substances with molecular weight greater than100, and allow water molecules to pass through.Hollow Fiber ultrafiltration: Ultrafiltration technology is a new technology widely used in water purification, solutionseparation, concentration, and extraction of useful substances from wastewater, wastewater purification and reuse.The separation process can be carried out at room temperature. It is suitable for the concentration or purification ofsome heat-sensitive substances such as juice, biological agents and some drugs. It has a wide range of applications.The size of Dalton or solute is 0.0. Ultrafiltration separation technology can be used in the range of 01-0.1 um.UV: After the RO system, the bacteria in the water are eliminated by using the UV sterilizing lamp.Ozone mixing tower: Ozone mixing tower is also known as oxidation tower. Its function is to mix ozone into water.In order to achieve the ideal sterilization effect of ozone, ozone mixing tower is used to mix ozone and water fully undercertain pressure and time.Ozone generator: Ozone is a widely recognized high-efficiency disinfectant in the world. Chemical property isparticularly active, is a strong oxidant, at a certain concentration can quickly kill bacteria in water and air. * Operating Parameters
1. Operating Pressure: < 300 psig
2. Maximum Recovery: 60% - 75%
3. Nominal Rejection: 95-99%
4. Operating Temperature: 2-35 ºC
5. Minimum Inlet Pressure: 30 psig
6. Design Temperature: 25 ºC
* Applications

Industry	Application
Electronic industrial	Cleaning water of electronic components (Integrated circuits, silicon chips, display tube, electrode foil)
pharmaceutical industry	Transfusion, injections, tablets, biochemical products, equipment cleaning, etc.
Chemical industry	chemical recycling water,chemical products manufacturing,chemical fertilizer
Electric power industry,Boiler Feed water	Thermal power boiler, low pressure boiler power system in factories and mines
Food industry	Pure drinking water, beverages, beer, wine, health products
Seawater, brackish water desalination	Island, ships, offshore drilling platforms, brackish water
Drinking water	Estate, communities, enterprises
Others	Grey water reuse, coated glass, fine chemicals, printing and dyeing

* Advantage
1. Compact structure, small footprint, low investment costs, low energy consumption;
2. Reverse osmosis system is a physical process, no phase change, significant energy-saving;
3. Simple operation, easy to realize automatic control, labor-saving, Highly pollution-resistant separation device, easy clean
4. High recovery rate and desalination, can produce fresh water from rivers, lakes, well water, sea water or brackish water;
5. A Concentration method to recover valuable ingredients;
6. Removal of organic matter, bacteria, colloidal and impurities in the water, obtain high purity water;
7. Advanced membrane protection system, when operating on/off switch, system can automatically operate flush function, reduce pollution, extend the life of the membrane.
Packaging & Shipping
Package:
purification machine is with international standard export package.(Wooden Case,Carton Box & Export Neutral Packing available)
Shipment:
We will choose the most suitable delivery according to customers' need.
Company Profile
Suzhou Yuesheng material technology CO., Ltd. is a professional and dynamic company of beverage filling machine. Our company is located in Suzhou City , Jiangsu Prov. China . It is 100kilomiters far away from Shanghai .Our company has got ISO9001: 2000 Quality Management System Certification, CE Certification, MC Certification, and the honor of"Jiangsu AAA Grade Quality &Integrity Enterprise".Our company mainly produces and sells bottled/barreled mineral water/purified water complete production line,carbonated beverage production line,fruit juice/tea production line,water purification system,oil/wine/milk filling line with advanced skills,excellent quality,quick and thoughtful sales service. Our company also provide services of program consultation,installation,technical training,equipment improvement,etc.The products are exported to the United States, Germany, Japan, Australia, Egypt,the Middle East, South Africa and many other parts of the world. Our company wins a high reputation and is highly trusted by the customers.


FAQ
Q: How to solve the machine problems before they transport to customer's factory?
A: We will make 100% test in factory before we do the package, to make sure there is no big problems, also we have people to check all goods without any Omission.

Q: Because of the epidemic, how you will arrange the after-sales service?
A: We still have to send our engineer to help you install lines, and make sure your project can be finished in time.
We also can have a video call to help you on daily maintenance.
We send spares parts within 24 hours.
We can have zoom meeting or video call to discuss the project, so we will have close relationship with our clients.
Q: Finance and transportation.
A: We accept flexible payment terms, like T/T, L/C etc. If you face some difficult on finance, we are glad to help you.
We have cooperated freight company who have rich experience in sea shipping, to make sure you can get high quality shipping service with good price.

---
