| Dimension of host machine | 1700x1400x2300mm | Power of host machine | 11 kw |
| Weight of host machine | 1T | Hydraulic pressure | 12T |
| Shaping method | Top side press | Capacity (pieces/8 hours) | 4000-4800 |
| Power supply | 380/400/220V | Forming period | 10-15S |

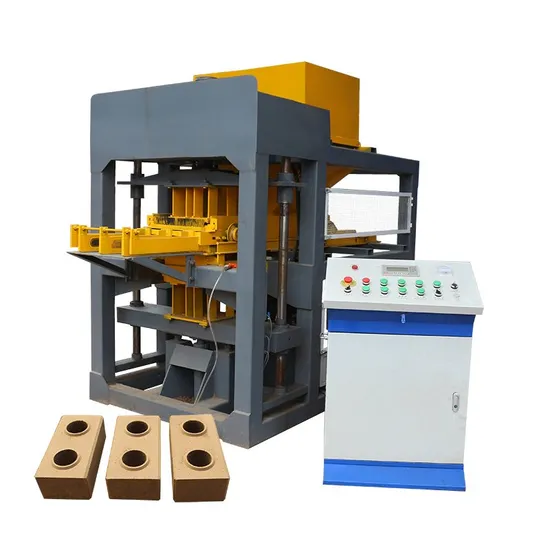

| The whole machine adopts PLC automatic control system and advanced hydraulic components. The vane pump with strong silence is selected as the oil pump to provide strong oil pressure and greatly reduce the working noise. The solenoid valve, the core component of the oil pressure system, is a well-known domestic brand. The added proportional valve can more accurately control the action of equipment and the compactness of products. The addition of water cooler greatly improves the stability of the whole machine. The machine can produce various styles of chain bricks and pavement bricks by changing molds, which makes it possible for customers to produce diversified products. It is an ideal equipment choice for medium-sized brick making machine factory! |
| Advantages: 1. Silent gear pump is selected for oil pump (plunger pump is selected for airbag clamp version) 2. The whole machine is automatically controlled by PLC, and Delta PLC is adopted 3. The air bag clamp ensures that the bottom of the brick is flat and uniform 4. The upper and lower pressurization system ensures the compactness of bricks to the greatest extent 5. Proportional valve control, oil pressure adjustable |
