Hot Sale Milling Machine Wfj Micro Fine Grinder

Product Description

WFJ Micro Grinder

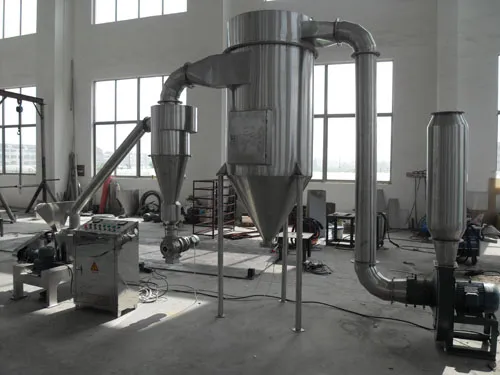

Product DescriptionWFJ micro grinding machine is made up of main engine, auxiliary machine and electric control. The material is fed into the crushing chamber through a hopper, and is cut and sheared by the high speed cutters. Then the material is moved into the whirlwind separator and sack dust catcher by the negative pressure sucking method. The dust is collected and recycled via cloth bag or filter of dust absorption box. There is no dust flying during the production process of micro grinding machine so as to improve the utilization of materials.
ApplicationWFJ micro grinding machine is widely used in pharmaceutical, chemical and food industries. It can be applied to chemical, food, medical, cosmetic, dyestuff and shell materials. Due to the negative pressure sends heat out continuously in operation, the machine is also applied for the grinding of heat sensitive materials.
Features
1. Micro pulverizer machine features compact design and reasonable structure with wind option.
2. Micro grinding machine is equipped with rating devices which makes a complete crushing and classification.
Parameters

Model	Production Capacity (kg/h)	Feeding Size (mm)	Discharging Size (mesh)	Total Power (kw)	Main Speed (r/min)	Overall Dimensions (m)	Weight (kg)
WFJ-15	10 to 200	≤ 10	60 to 450	13.5	5800	4.2 × 1.2 × 2.7	1000
WFJ-18	25 to 600	≤ 10	60 to 450	19.3	5200	4.5 × 1.2 × 2.7	1500
WFJ-36	30 to 800	≤ 10	60 to 450	39.5	3800	6.4 × 1.5 × 3.8	2500
WFJ-60	50 to 1200	≤ 10	60 to 450	75.3	3200	7.5 × 2.3 × 4.2	3200
WFJ-80	100 to 1500	≤ 15	60 to 450	90.75	2800	7.5 × 2.5 × 4.2	4000
WFJ-100	150 to 2000	≤ 15	60 to 450	125	2400	8.5 × 2.7 × 4.2	5000

Note: Due to the differences in materials, output will be different.
