Welcome to visit

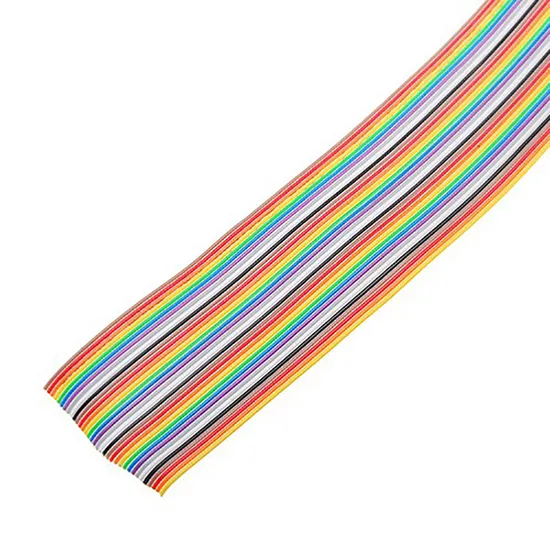

UL2468 18AWG 24AWG Flat Ribbon Cable PVC Insulated Copper Wire Rainbow Cable

US$0.02-0.10 5,000 Meters (MOQ)

Basic Info.

Model NO.
UL-2468
Type
Optical Fiber
Species
Interal Wiring of Vehicle
Connector
for General Purpose Internal Wiring of Appliance
Material Shape
Flat Wire
Wire Core Material
Bare Copper Wire
Certification
RoHS, ISO9001
Brand
Bort
Sample
Free Sample Available
Packaging
610m/Roll
Color Available
Any Colors
Delivery Time for Samples
3-5days
Delivery Time for Mass Production
7-30days
Appliance
Internal Wiring of Electronic&Electrical Equipment
Warranty Time
at Least 10 Years for Proper Use
Standard of Production
RoHS & Reach
Factory Management Standard
ISO9001:2008
Annual Capacity
300,000kms
Transport Package
Roll or Spool Packing, Stretch Film Wrapping, Car
Specification
customize
Trademark
Bort
Origin
Zhangzhou
HS Code
8544492900
Production Capacity
300000km/Year

Packaging & Delivery

Package Size
20.00cm * 20.00cm * 15.00cm
Package Gross Weight
0.200kg

Product Description


PRODUCT DESCRIPTION:
★Rated temperature:80ºC
★Rated voltage:300V
★According to:UL Subject758,UL1581,C22.2
★Solid or stranded,tinned or bare copper conductor 32--16AWG
★PVC insulation
★Passes UL VW-1& FT1 vertical flame test
★Uniform insulation thickness of wire to ensure
easy stripping and cutting
★For general purpose internal wiring of appliance
Finished Products Maximum Resistance at 20ºC
AWG/NO.OFCOND Cond No. Insulation Avg. Thick. Outside Dia. Packing
/mm mm mm m/r Ω/mm
30×2C 7/0.1 0.45 1.20×2.50 610 354.33
28×2C 7/0.127 0.45 1.30×2.70 610 223.75
26×2C 7/0.16 0.45 1.40×2.90 610 139.76
24×2C 11/0.16 0.45 1.50×3.10 610 88.36
22×2C 17/0.16 0.45 1.70×3.50 610 60.16
20×2C 21/0.178 0.45 1.90×3.90 305 38.58
18×2C 34/0.178 0.45 2.10×4.30 305 22.98
16×2C 26/0.254 0.45 2.40×4.90 305 15.06
