New Design Straw Bale Shredder Biomass Crusher for Biogas Power Generation

Product Description

New Design Straw Bale Shredder Biomass Crusher for Biogas Power Generation
Product Description

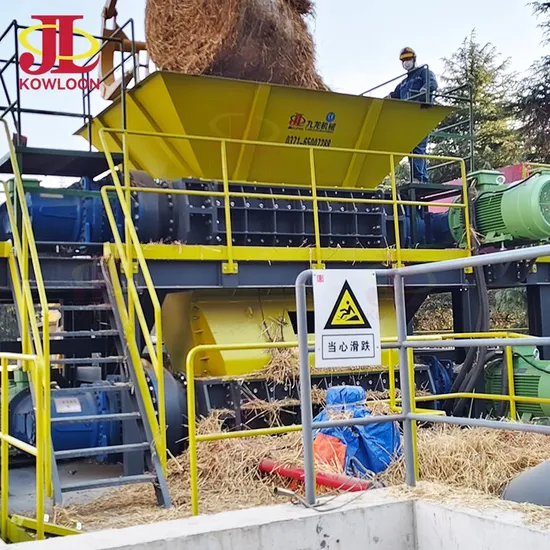

Double Shaft Biomass Shredder Machine
The Kowloon Machinery's double shaft shredder machine is a widely used industrial shredder with low speed, high torque and high throughput, designed to efficiently process a wide range of materials. It can be equipped with different components depending on the material and final size or used with other stages of shredders to reduce the material to the desired size. Kowloon machinery (manufacturer of double shaft shredder from china) shredders are equipped with planetary reducer and brand motor for highly reliable performance and low maintenance cost.
Utilizing the JLSS series of biomass shredders can result in much more efficient shredding. Providing aggressive shredding capabilities, these slow-speed industrial shredders promote higher versatility since they can handle a variety of biomass materials, easily cutting them down into more manageable sizes.
Kowloon Machinery's double-shaft shredder has high output and reliable performance. It can process raw materials such as biomass waste, paddy straw, corn stalks, wheat straw, rice straw, palm fiber, coconut shells, soybean straw, cotton straw, tree branches, bagasse, grass, hay, agricultural and forestry waste, etc. It is widely used in biomass power plants, biogas power generation, biomass cogeneration power plants

Double Shaft Shredder Machine
Model	JLSS1000	JLSS1200	JLSS1500	JLSS2000
Motor	15kw+15kw	22kw+22kw	55kw+55kw	90kw+90kw
Gearbox	2units,planetary type, gear transmission
Shaft	solid shaft, made of 40Cr, hardened and tempered
Shredder chamber (inner)	940x725mm	1120x1000mm	1450x1100mm	1920x1250mm
Rotor rotary speed	8-18rpm	8-18rpm	8-18rpm	8-18rpm
Blade	diameter 360mm	diameter 360mm	diameter 530mm	diameter 560mm
Lubrication system	With automatic oil lubricator
Dimension	3.2x1.3x2.3m	3.2x2x1.9m	4.9x2.8x2.8m	6x3.8x4.8m
Weight	6000kg	12000kg	18000kg	29000kg

Model	JLSS400	JLSS600
Main shaft power	11kw*1	11kw*2
Main shaft rotary speed	20rpm	20rpm
Working capacity	according to specific gravity	according to specific gravity
Weight	1000kg	3000kg
Discharging conveyor	None	None
Shred blade	20pcs, 18-teeth, thickness 16mm, φ260, made of 55Sicr	20pcs, 18-teeth, thickness 16mm, φ260, made of 55Sicr
Finished chips size	10-25mm	≤50mm
Infeed open	700*650m	820*900mm
Shredder chamber size	400x480mm	600x480mm
Dimension	1450*1100*1600mm	3660*1100*1800mm

Details Show
Kowloon Machinery Dual Shaft Shredder Machine
Kowloon Machinery offers cost effective biomass pre-shredding equipment, the JLSS range of double-shaft shredders are ideal for the integrated use of biomass due to their ability to process material to a small size in a single pass, high capacity disposal, intelligent maintenance and continuous operation. the JLSS double-shaft shredder blade set is optimized for the processing of lignin and cellulose and is cost effective and durable.
The JLSS series double-shaft shredder is specially designed to handle waste from municipal green waste, rootstocks, untreated waste wood, straw or fruit shells of crops, etc. It can quickly shred biomass materials into small pieces. Kowloon Machinery 's double-shaft shredder has high output and reliable performance, widely used in biomass cogeneration power stations.
The biomass shredder is driven by a motor that drives two cutter shafts that rotate the cutter and sleeve at low speed. The shearing effect is achieved by the shearing of the adjacent cutter face edges on the cutter shaft, the shearing of the cutter tip against the cylindrical surface of the sleeve and the tearing by the torque and speed difference of the cutter shaft. Biomass waste shredder with laser-claydding layer, in this way to made shredder blades resistant to high temperatures and wearing, extend its service life.
Kowloon Machinery's twin shaft shredders can also shred the following materials:
1. Scrap metal: scrap iron, aluminum, copper, steel bars, lead plates, scrap cars, bicycles, three-wheeled electric vehicles, bumpers, car bodies, scrap tires, aluminum cans, compressors, steel plates, etc.
2. Waste furniture: beds, sofas, cabinets, wardrobes, mattresses, tables and chairs, dining tables, TV cabinets, coffee tables, desks, bookcases, computer chairs, office desks, shoe cabinets, storage racks etc.
3. Wood: wood mattress, wood furniture, wood pallet, scrap timber, sawdust chipboard, composite board, wooden door, forklift pallet, wood board, wood template, wooden case, wooden box, wood sofa, wood bed, etc.
4. Textile: scrap clothes, shoes, fishing net, woven bag, ton bag, jumbo bag, fishing net bundles, dust collector bag, industrial textile waste, etc.
5. Plastic: plastic pallet, plastic drum, plastic bucket, plastic film, waste appliances shell, garbage plastic drum, IBC drum, IBC barrel,garbage bag, rubbish bag, plastic pipe, washing machine, forklift pallet, lead acid battery shell, etc.
6. All kinds of Kitchen waste, domestic waste, rdf derivatives,garden waste etc.
Shredder Details
1 Blades
Biomass waste shredder with laser-claydding layer, in this way to made shredder blades resistant to high temperatures and wearing, extend its service life.
Blades made of high hardness alloy, according to different material processing, different blade shape, thickness and cutting head quantity providing the optimum solutions.
2 Planetary Gearbox
High torque, low noise, steady performance. Greater power transmission efficiency, compact and efficient load distribution, light-weight and high-power density, accurate results & stability and enhanced life-span.
3 Split Box
The split type chassis design makes the overall structure of the shredder more compact, lightweight, occupies less space, is easy to install and fix, and can achieve efficient crushing operations in limited space. The split design makes the shredder more convenient to maintain.
4 Rotor
Dual shaft design, ease to shear and cut both of soft and hard materials, avoid the problem of material entanglement and difficulty in material detachment.
5 Brand Motor
Shredder electric motors we provide WN, SIEMENS, ABB, WEG quality brands for options.
6 Control Cabinets
Shredder control cabinets adopts PLC control, Schneide r and Siemens electrical components for options, automatically reverse when overload.
If you are interested in our production line, please do not hesitate to contact us and we will provide you with a tailor-made solution.
Installed Projects
Packaging and Shipping
Company Profile
Company Introduction
Kowloon Machinery located in industrial hub of Zhengzhou city, China, design and manufacture industrial shredder, wood processing machinery, waste tire recycle equipment and scrap metal recycling machines. Kowloon products approved by CE and ISO certificates. Up to now, we have exported to more than 30 countries and share markets in worldwide, and now are still growing continuously.
We effort on improving and researching, in past years, various of new products were developed and becomes popular in domestic and abroad market, won good reputation and corporate image, we always effort on best quality and service, welcome to inquiry!
Certificate
Customer Cooperation
Zhengzhou Kowloon Machinery has always won the trust and recognition of many users with its excellent quality and excellent after-sales service. The company has CE, ISO, SGS, CMIC and multiple certification certificates and invention patents. New and old friends are welcome to visit our factory and Trial machine test.
FAQ
1. Are You Trading Company or Factory?
Machinery is a Factory with 31 years experience in machinery manufacturing; we provide you completive Factory Price and good After-sale Service!
2. What about the Machine Installation?
For a single machine or a simple line, we provide you Foundation Drawing ,Installation Instruction Books or successful installed machinery picture or video; for large machines and complex production line, we could send our engineers to guide the installation if necessary.
3. How About the Spare Parts?
We offer some free spare parts like belt, gasket etc small parts, for the BLADES, KNIVES, SHAFTS etc important wearing parts, we suggest customers buy some along with the machines to save the shipping cost, and we have enough spares parts in stock.
4. What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
Kowloon has people special for after-sale service,if customers outside China have problems when machine working, just feel free to send us the picture or video to show us, we will give you solutions in 24hours.
5. Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.

---
