Zlp 630 Aluminum Stage Suspended Window Cleaning Platform

Product Description

Zlp 630 Aluminum Stage Suspended Window Cleaning Platform
The platform can be customized,pls contact me feel free sky1pe:dmckitty

Model ZLP 500 ZLP630 ZLP800 ZLP1000 Appearance Painting / Hot galvanized Fabrication material Steel/ Aluminum alloy Rated load 500 kg 630kg 800kg 1000kg Lifting speed 9~11m/min 9~11m/min 8~10m/min 8~10m/min Motor power 2×1.5kw 2×1.5kw 2×1.8kw 2×2.2kw Brake torque 16 km 16 km 16 km 16 km Steel rope angle adjusting range 3°~8° 3°~8° 3°~8° 3°~8° Distance between two steel rope ≤ 100mm ≤ 100mm ≤ 100mm ≤ 100mm Counterweight (optional) 25kg×30pcs 25kg×36pcs 25kg×40pcs 25kg×44pcs Diameter of steel rope 8.3mm 8.3mm 8.6mm 8.6mm Max Lifting height(m) 300m 300m 300m 300m Motor rotation speed 1420 r/min 1420 r/min 1420 r/min 1420 r/min Voltage (3PHASES) (optional) 220V/380V/415V 50Hz/60Hz

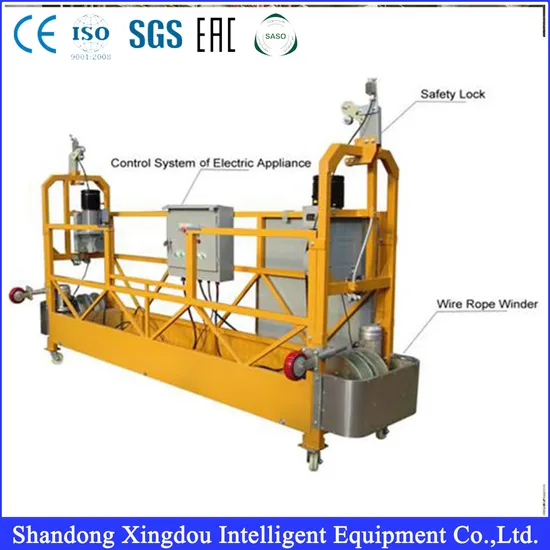

Parts of construction swing stage equipment: 1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized) 2. Suspension Mechanism: Steel (painted or hot galvanized) 3. Electric hoists:LTD6.3 or LTD8 4. Safety Lock: LST30 5. Electric control box: Along with hoists 6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm 7. Safety rope: 18mm,20mm 8. Electric cable: 3*2.5+2*1.5 9. Counterweights: Cement , cement with steel cover & Iron counterweight 10. Spare parts

---
