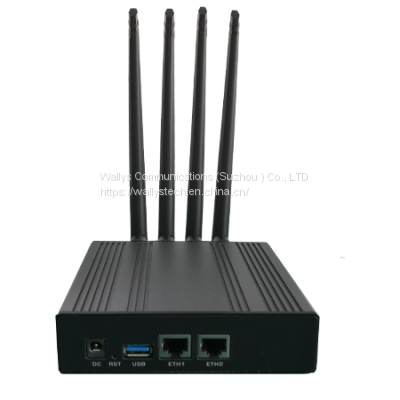

Wallys indoor AP/DR-AP40X9-A Quaclomm IPQ4019/IPQ4029 support OpenWrt 2.4/5G dual bands wifi6 router
Wallys has been specializing in product design & manufacturing and delivering superior OEM/ODM services in wireless communications. Dedicated to innovative designs for wireless modules. Customization is also supported, We have 90% of the world market, We're a supplier to Facebook.
Skype/EMAIL:sales@wallystech.com
APPLICATIONS
+ Profi WiFi hotspot coverage
+ Commercial radio coverage
+ Hotel Wireless application
+ Country coverage
+ Internet for passengers (bus, train, plane, …)
+ Security Surveillance
+ Some special scene application
+ Heavy-duty industrial environment use
Description
DR-AP40X9-A (Two Versions) is a 2x2 2.4G&5G high power Radio AP Router which including 1x DR40X9(IPQ4019/IPQ4029) Board;2 x 2.4G&5G dipole Antennas; 1 x PSU(DC power or PoE);
1 x Enclosure.
Dipole antenna
■ 2 x 2.4G&5G Antenna
■ 5dBi 2.4GHz/5Ghz
■ SMA Plug interface
■ Plastic rod of black
■ RoHS compliance
Enclosure
■ Dimension: 132x 119 x 34 mm
■ Aluminum alloy material
■ Support Wallys’ PCBA Mainboard
Parameter
| Rating
| Unit
|
Supply Voltage
| 24V~48
| V
|
Operating Temperature Range
| -40 to +70
| ºC
|
Storage Temperature Range
| -45 to +105
| ºC
|
Operating Humidity Range
| 5 to +95 (non-condensing)
| %
|
Storage Humidity Range
| 0 to +90 (non-condensing)
| %
|
Symbol
| Parameter
|
CPU
| IPQ4029/IPQ4019（Quad core ARM Cortex A7 at 716.8 MHz）
|
Antenna Connector
| 2 x 5G MMCX connectors;2x2.4G MMCX
|
10/100/1000Mbps Gigabit Ethernet
| 2xRJ45
|
SFP connector
| 1xSFP fiber module connector (optional)
|
3G/4G connector
| 1xminipcie 3G/4G connector support with two sim card
|
USB connector
| 1xUSB 3.0 connector
|
POE
| 24V~48V passive POE
|
DC Jack
| 24V~48V power supply
|
ROHS Compliance
| YES
|
Dimension
| 115mm x 105mm x 16mm
|
Max Power
| 48.1V x 0.180A= 8.658W
|
Nor Flash
| 2MB~32MB
|
Nand Flash
| 128MB
|
DDR
| 256MB~512MB
|
| Radio TX Specifications(5180MHz-5825MHz) |
Operating Mode
| Data Rate
| Power
| Tolerance
|
1 Chain
| 2 Chains
|
802.11a
| 6 Mbps
| 27dBm
| 30dbm
| ±2dB
|
54 Mbps
| 23dBm
| 26dbm
| ±2dB
|
802.11n HT20
| MCS0, MCS8
| 26dBm
| 29dbm
| ±2dB
|
MCS7, MCS15
| 22dBm
| 25dbm
| ±2dB
|
802.11n HT40
| MCS0, MCS8
| 25dBm
| 28dbm
| ±2dB
|
MCS7, MCS15
| 21dBm
| 24dbm
| ±2dB
|
802.11ac
| MCS0, MCS10,MCS20
| 25dBm
| 28dbm
| ±2dB
|
MCS9,MCS19,MCS29
| 19dBm
| 22dbm
| ±2dB
|
| Radio RX Specifications(5180MHz-5825MHz)
|
Operating Mode
| Data Rate
| Sensitivity
|
802.11a
| 6 Mbps
| -96dBm
|
54 Mbps
| -78dBm
|
802.11n HT20
| MCS0, MCS8
| -93dBm
|
MCS7, MCS15
| -73dBm
|
802.11n HT40
| MCS0, MCS8
| -90dBm
|
MCS7, MCS15
| -70dBm
|
802.11AC HT40
| MCS0, MCS10,MCS20
| -90dBm
|
MCS9,MCS19,MCS29
| -67dBm
|
802.11AC HT80
| MCS0, MCS10,MCS20
| -88dBm
|
MCS9,MCS19,MCS29
| -62dBm
|
| Radio TX Specifications(2412MHz-2482MHz)
|
Operating Mode
| Data Rate
| Power
| Tolerance
|
1 Chain
| 2 Chains
|
802.11g
| 6 Mbps
| 27dbm
| 30dbm
| ±2dB
|
54 Mbps
| 25dbm
| 28dbm
| ±2dB
|
802.11n HT20
| MCS0, MCS8
| 26dbm
| 29dbm
| ±2dB
|
MCS7, MCS15
| 25dbm
| 28dbm
| ±2dB
|
802.11n HT40
| MCS0, MCS8
| 26dbm
| 29dbm
| ±2dB
|
MCS7, MCS15
| 24dbm
| 27dbm
| ±2dB
|
