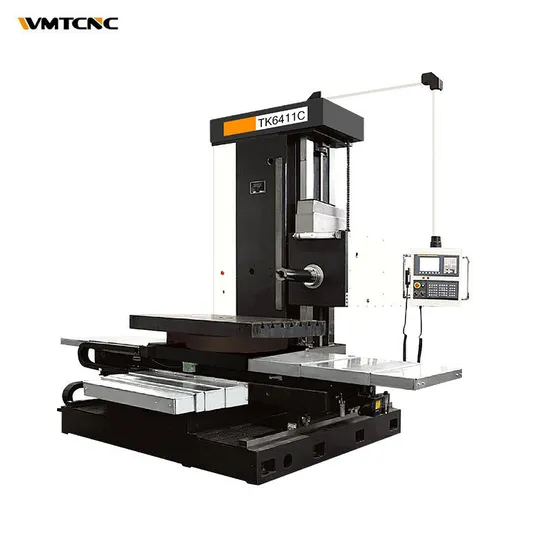

TK6411C Horizontal Fanuc CNC Milling Boring Machine for Precise Machining

Product Description

Product Description
Main features:
1. This machine equipped with a single column, side hung box, four-point positioning worktable, manual rotation (optional Hirth CNC turret 360x1 °indexing).
2. X, Y, Z axis controlled by CNC system, could realize simultaneous motion.
3. Boring axis' flexible and axis of facing head are controlled by servo motor, can realize automatic processing.
4. X, Y, Z axis with rectangular sliding guide. plastic paste process, shock absorption, and high precision.
5. The spindle box with counterweight balance, spindle and axis of facing head are controlled by AC servo motor.

Horizontal milling boring machine	TK6411B
	(TK6411C)
Table size	1350x 1000 mm
Spindle dia.	φ130 mm
X Travel	1500 mm
Y Travel	1200 mm(1140 mm)
Z Travel	1000 mm
W T ravel	550 mm
B Travel	Manual type( ± 360° CNC control)
Spindle center line to table	0-1200 mm (1140mm )
T slot	7 -22mm 125mm (N/W/D)
Table loading	5T
CNC controller	SIEMENS 828D or FANUC Ol MD
Axes quantity	X/Y/Z/W 4 axis(X/Y/Z/W/B 5 axis)
Spindle taper	BT50(P50T-1)
Spindle speed	12 - 1000rpm
Main motor power& torque	F:18.5/22Kw(1600/2000Nm)
	S: 17/20.5Kw(2000/2400Nm)
Max.boring/drilling dia.	O 250mm/
Max.axial feeding force on spindle	20000 Nm
X/Y/Z Rapid traverse	10000m m/m in
X/Y/Z axis Feeding speed	5 - 2000mm/min
W axis Feeding speed	5 -2000mm/min
W axis Rapid traverse	5000mm/min
X/Y/Z axis (GB/T17421.2-2000) Positioning accuracy	0.03/0.03/0.03 mm
W axis Positioning Accuracy (GB/T17421.2-2000)	0.03mm
(GB/T17421.2-2000)	0.015/0.015/0.015/0.015mm
Repeated accuracy
Machine dimension	5.1 x 3.7 x3.6m
Machine dimension	18.5T

Company Profile
FAQ
Q1: How is the warranty?A1: Warranty time is 13 months after BL date.Q2: Can we visit your factory before order?A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What's the MOQ?A4: One set only.Q5: How about your quality?A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.Q6: Do you have professional engineers?A6: Yes, we have professional engineers and designers. We can provide OEM services.Q7: Can you provide customized machines?A7: Yes, we can design and manufacture according to your specific requirements.

---
