Made in China Carbon Dioxide Controller CO2 Meter Indoor Air Quality Ndir Sensor Amazon Hot Sale

Product Description

Product Description

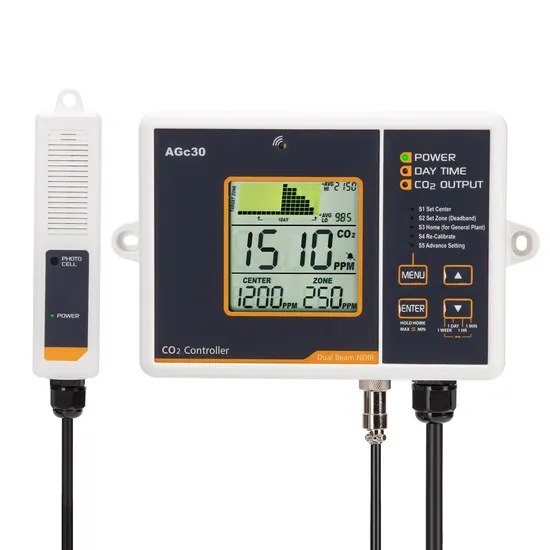

The Wall Mount CO2 Controller AGc30, with built-in Dual Beam NDIR technology and Day/Night auto detect sensor, is specially designed to measures CO2 level for greenhouse and ventilation. The AK C30 also helps to extend your measure spot away from the display with 4.5 meters long cable connected to the remote sensor.
Its relay output could control the other connected devices, such as CO2 generator to produce in a greenhouse when the CO2 concentration is below to help increase plant yields by supplying CO2 required for photosynthesis.
It is perfect used in agricultural applications like greenhouse/ hydroponics rooms, plant factories with both audible and visual alarms.
Basic Info.

Model NO.	AGc30	Buzzer Sound	80dB @10cm
Trademark	OEM/ODM	Power Source	AC 100 ~ 240 VAC
Sensor Type	Dual-Beam NDIR	Origin	China KunShan
CO2 Range	0~5000ppm	HS Code	9027100090
Display Type	LCD	Production Capacity	80000 Pieces/Year
Photo Cell	Auto detect Day/Night	Transport Package	Carton
Sensor Unit Size	153*33*27mm (6.0*1.3*1.1inch)	Package Type	1 pcs/Color Box
Control Unit Size	195*145*44mm195 (7.7*5.7*1.7inch)	Weight	700g ( 24.7oz)

Feature:
Ø Dual Beam NDIR (Non-Dispersive-Infrared) technology is used to improve the long term stability.
Ø CO2 controller; Tracer
Ø Built-in Day/Night detect sensor
Ø Chart with variable time Zoom Levels
Ø Foolproof "Hold Home" function
Ø Good Zone display indicate
Ø Remote Sensor
Product Parameters
LCD Display:
Trend Chart Zoom:
Below is a table that show the available Zoom Levels for all parameters CO2, as well as the duration of each division for corresponding Zoom Levels:
Auto Detect Day/Night:
The built-in Photo-Cell sensor can automatically detect whether it is Day or Night. It can override the CO2 control and shut off the CO2 generator by turning off the output power during the night. Conversely, if the Photo-Cell detects light and the CO2 level is low, the device will start the CO2 generator by turning on output power.
Output Control:
Output power is on when CO2 concentration is over Set Center+(1/2) Set zone, and off when CO2 concentration is below Set Center-(1/2) Set zone. For example, if the Set Center is 1200ppm, and the Set zone is 400ppm, the output power will shut off when CO2 over 1200+(1/2)*(400)=1400ppm, and power on when CO2 below 1200-(1/2)*(400)=1000ppm.
Specifications:
Typical test conditions, unless otherwise specified: Ambient Temp =23+/-3°C, RH=50%-70%, Altitude=0~100 meter

Measurement	Specification
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating & Storage RH	0-95%, non-condensing
CO2 Measurement
Accuracy at 0~3000ppm	±50ppm or ±5% of reading, whichever is greater
Accuracy over 3000ppm	±7%
Repeatability	20ppm at 400ppm (standard dev. of 10 readings in 1 minute)
Measurement Range	0-5000ppm
Display Resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Temp Dependence	±0.2% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C
Pressure Dependence	0.13% of reading per mmHg (corrected by user's altitude input)
Response Time	<2min for 63% of step change or <4.6min for 90% step change
Warm-up Time	<30 sec
Power input	AC 100 ~ 240 VAC
Operating Temperature	32°F to 122°F (0°C to 50°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Operating & Storage RH	0-95%, non-condensing
CO2 Measurement
Accuracy at 0~3000ppm	±50ppm or ±5% of reading, whichever is greater
Accuracy over 3000ppm	±7%
Repeatability	20ppm at 400ppm (standard dev. of 10 readings in 1 minute)
Measurement Range	0-5000ppm
Display Resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Temp Dependence	±0.2% of reading per °C or ±2ppm per °C, whichever is greater, referenced to 25°C
Pressure Dependence	0.13% of reading per mmHg (corrected by user's altitude input)
Response Time	<2min for 63% of step change or <4.6min for 90% step change

Application
