Xgj560 Double Ring Die Verticai Biomass Fuel Wood Sawdust Pellet Mill

Product Description

Product Description

HOT ANIMAL FEED PELLET MACHINE WITH CE

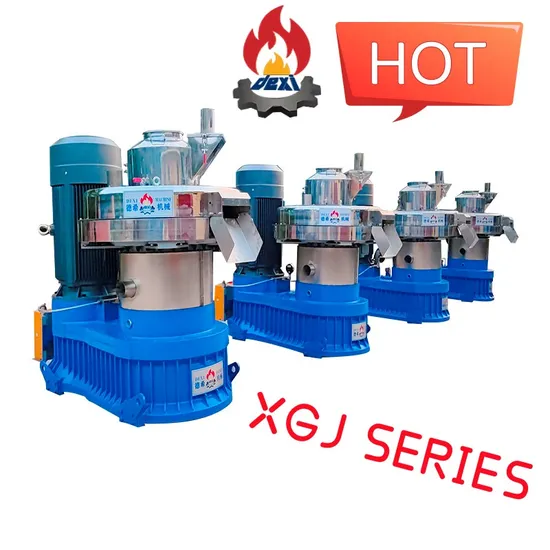

INTRODUCTION XGJ series vertical ring die wood pellet making machine is different from other horizontal ring die machine, this machine with vertical structure, easy for biomass materials feeding, big pressure, big capacity and working stable. It is the high efficiency equipment for biomass pellet making.
This wood pellet making machine is good at press low adhesive and hard molding materials, such as press the rice husk, hard wood sawdust, sunflower seeds husk, peanut shell, wood bark and other wood waste, it also can press different kind of straw and agriculture waste. This wood pellet making machine is widely using in biomass pellet making industry and other pellet forming industry.

Product Parameters

model	power(kw)	capacity (kgs/h)
XGJ460P	45+1.5+0.37+2.2	600-800
XGJ560	90+1.5+0.75+0.55+2.2	1000-1500
XGJ560P	132+1.5+0.75+0.55+2.2	1500-2000
XGJ700P	160+1.5+0.75+0.55+2.2	2000-2500
XGJ850	220+3+0.75+0.55+3	2000-3000
XGJ850P	220/250+3+0.75+0.55+3	2500-4000

Packaging & Shipping

1.XGJ560P wood pellet mill is update version of XGJ850, the machine with big strong industry gearbox, make the motor and machine shaft directly connected with the gearbox, improve the transmission efficiency, make the machine stronger and more stable.
2.The ring die is made of double-layer stainless steel.
3.the motor is a famous brand motor with a three-year warranty.
4.This wood pellet maker with totally automatically lubrication system, the gearbox with lubrication pump let the gear oil cycle lubrication of each bearing and gear.
5.And there also another grease pump regularly inject grease to the roller bearing.
So, this machine can long time no stop continually working. Pellet making process: Wood pellet mill is mainly applicable for difficult molding materials with low adhesion rate, for example, hard wood sawdust, rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, bark and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials.
When working, material from feeding mouth vertically to the roller frame board surface, through the rotation of the roller frame board, continuous uniform within the mold cavity surface. (the surface for roller connected ring die), under the roller rolling powder material through the die hole (Uniformly distributed in the inner surface of die).
This process is the role of material under high pressure, high temperature, produce a physical change or proper chemical changes(depends on different kind of raw materials ), make the powder material form elongated cylindrical solid body, the cylindrical solid elongation continuously will be cutting by uniformly distributed around the mold cutting knifes, become to "pellets" the pellet pusher will collecting the pellets to the outlet place.
(Product structure chart) Pellets under the action of gravity automatic fall, this pellet making process is complete.
Production photos
Related hot products

Product pictures	Product Link
	https://deximachine.en.made-in-china.com/product/GQOpMVYbqARr/China-Hot-Skj-Feed-Pelletizer-Machine-for-Animal-Feeds-Home-Use-with-CE.html
	https://deximachine.en.made-in-china.com/product/ZxCRdLJbCaUs/China-Skj-Series-Feed-Pelletizer-Machine-for-Animal-Feeds-Home-Use.html
	https://deximachine.en.made-in-china.com/product/fxkpMCGTTtYi/China-Hkj-Series-Big-Capacity-and-Safety-Feed-Pellet-Mill-for-Sale.html

Company Profile
Shandong Dexi Machine Co., Ltd Located at Licheng, Jinan, Shandong Province China.We are professional supplier for the biomass pellet machines and complete pellet production line.
Our products involve, wood chipper, wood sawdust making machine, hammer mill, drum rotary dryer, pellet making machine, pellet cooling machine, pellet packing machine and other equipment, such as animal feed pellet line, organic fertilizer pellet making line. We also provide design, technology supports, machine inspection service, etc. Cooperating with different manufacturers and research centers, we provide the pellet making machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the client's specific requirement, we also accept customize design and machine producing order. Through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Whatever pellet making machine you need from China, contact: Shandong Dexi Machine Co., Ltd. A one stop shop in the middle of China.
Customers'Visiting
OUR SERVIC
Pre-sale service
1. Our professional and experienced team helps every client to find his most suitable biomass wood pellet machine and chose the correct chipper, crusher, dryer and other machines for a complete biofuel pellet production plant line.
2. Any kind of legal logo printing or design are available.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
After you choose:
1. We will arrange production immediately based on customer's demand.
2. Empty loading running test once machine finished production.
3. Every equipment will be checked carefully before packing, take photos and video to you for confirmation.
4. Help you arrange shipment booking, machine delivery and help you for your importing documents.

After-sale service
1. 24hours on-line serivce, guide you doing installation and starting using for the purchased machines.
2. Video communication guide your local worker doing installation and commissioning, and normal maintenance.
2. We also can send engineers to customer's factory doing the guide installation for biomass pellet machine line and other big machines.
FAQ
Q. What is your payment term? A: T/T 30% down payment, balance to be paid before shipment. Q: What is your main market? A: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern AsiaQ: What is your producing time? A: Producing time depends on that machines you ordered. Usually takes 10 - 30 days. Q: What documents you can offer? A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff. Q: If equipments have some quality problem, how would you deal with? A: We will responsible for all the quality problems. We will check the machine to get the problem. If need parts, will send them to you. Q: How to install the equipments? A: We send 1-2 engineer (150USD/person/day) to the local plant for helping install and commissioning equipments. To save time, our service stuff will tell you what to prepare in advance. We can also teach the workers to how to use the machines and how to make the products better.
Hope to have a chance to cooperating with you and provide our best service to you.

---
