Hot Sale Nine-section Carbon Fiber Telescopic Tube, Carbon Telescopic Pole

Product Description

Product Description

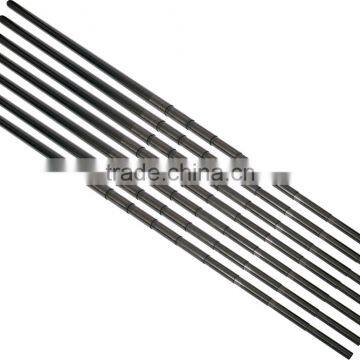

Product name: Nine-section Carbon Fiber Telescopic Tube /Telescopic Pole
Feature:
1.Light & high strength
2.Good corrosion, good resilience & good resistance
Company name: Weihai Fuhai Composite Material Co.,Ltd
Company type: Manufacturer
Brief introduction:
We are specialized in manufacturing all kinds of carbon fiber tube .
Carbon Fiber tube has been widely used in hitech fields, such as aerospace,
modern sewing machinery, petrochemical industry, medical machinery,automobiles,
machinery manufacturing, construction, sports and entertainment items.
We can provide carbon fiber tube with different sizes and colors and surface treatment.
Aluminum or polyester clamps can be added in the telescopic pole
The specification of the seven-section telescopic pole we usually use:

length		OD	ID
section 1--- length 1850 mm		24	19.7
section 2--- length 1775 mm		28.6	25.6
section 3--- length 1823 mm		33.4	30.3
section 4--- length 1865 mm		38.2	35.2
section 5--- length 1904 mm		43.2	39.7
section 6--- length 1945 mm		44.3	47.8
section7---length 2040 mm		54.3	49.8
TOTAL LENGTH	13202mm

The specification of the nine-section telescopic pole we usually use:

section	I	H	G	F	E	D	C	B	A
clamp	0	1	2	3	4	5	6	7	8
maximumOD	52.75	48.25	43.75	39.25	35.75	32.65	29.55	26.45	23.35
standardOD	52.60	48.10	43.60	39.10	35.60	32.50	29.40	26.30	23.20
minimumOD	52.45	47.95	43.45	38.95	35.45	32.35	29.25	26.15	23.05
maximumID	48.65	44.15	39.65	36.15	33.05	29.95	26.85	23.75	20.65
standardID	48.60	44.10	39.60	36.10	33.00	29.90	26.80	23.70	20.60
minimumID	48.55	44.05	39.55	36.05	32.95	29.85	26.75	23.65	20.55
thickness	2.0	2.0	2.0	1.5	1.3	1.3	1.3	1.3	1.3

Package:
Quality Certificate:

---
