US$43,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Transport Package
Container
Specification
650, 850, 1050
Production Capacity
1000PCS/Year
Product Description

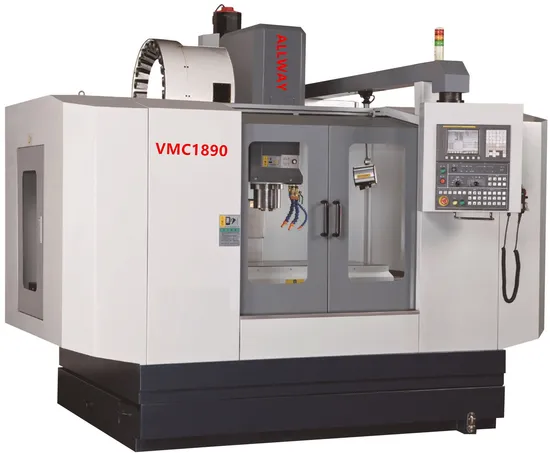

VMC1580 VMC1890 heavy type CNC milling machine tool with 8000rpm spindle speed
Main configuration & accessories:
1. Resin sand casting, Meehanite HT-300;
2. X, Y, Z rails adopt stainless steel telescopic cover;
3. Roller type linear guideway from Taiwan
4. Ball lead screw from Taiwan
5. Can choose belt driven spindle or direct driven spindle;
6. Taiwan pneumatic components;
7. Taiwan ATC, umbrella type and disc type both are available;
8. Import bearings for leadsrews;
9. Import coupling;
10. Headstock Nitrogen balance system as optional;
11. Full enclosed cover;
12. Rigid tapping;
13. Spindle center ring blast;
14. Work lamp;
15. Pilot lamp;
16. USB interface and ethernet interface;
17. Manual pulse generator (MPG);
18. Centralized automatic lubrication system.
19. Cooling and flushing system.
20. Heat exchanger for electrical cabinet ;
21. Leveling blocks & bolts;
22. Air gun+Water gun
23. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR,etc.
Technical parameter:
Item | Unit | VMC1580 | VMC1890 |
Capacity |
X axis travel | mm | 1500 | 1800 |
Y axis travel | mm | 800 | 900 |
Z axis travel | mm | 700 | 800 |
Spindle nose to worktable | mm | 155-855 | 150-950 |
Spindle center to column | mm | 855 | 965 |
Leadscrew/Guideway size |
Leadscrew diameter | mm | 50 | 55 |
Linear guideway width | mm | 55/45/55 | 55/55/55 |
Worktable size |
Worktable Length | mm | 1600 | 2000 |
Worktable width | mm | 800 | 900 |
T slot qty-width*distance | mm | 7-22*110 | 7-22*120 |
Max loading capacity | kg | 1500 | 2000 |
Spindle |
Spindle speed | rpm | 8000/Belt | 8000/Belt |
Spindle motor power | kw | 15/18.5 | 15/18.5 |
Spindle tork | Nm | 70 | 70 |
Spindle taper | | BT40 | BT50 |
Feeding system |
Fast moving speed (X/Y/Z) | m/min | 30/30/24 | 30/30/24 |
Cutting speed | mm/min | 1-10000 | 1-10000 |
Feed motor power | kw | 4.5/4.5/4.5 | 4.5/4.5/4.5 |
X/Y/Z Axsis motor torque | Nm | 37/37/37 | 37/37/37 |
Tool Magazine |
Capacity | pcs | Disc/24 | Disc/24 |
Max tool diameter | mm | 120 | 200 |
Max tool weight | kg | 8 | 18 |
Max tool length | mm | 300 | 300 |
Tool change time (TT) | | 2.33 | 2.91 |
Accuracy |
Positioning accuracy | mm | 0.008 | 0.008 |
Repeat accuracy | mm | 0.005 | 0.005 |
Machine dimensions |
Length | mm | 4200 | 4300 |
Width | mm | 2800 | 3100 |
Height | mm | 3300 | 3500 |
Weight | kg | 11000 | 14000 |
Standard Accessories
Standard Accessories:
Fanuc 0i MF Plus(5) control system; X/Y/Z axes: Fanuc servo drive motor; Belt type 8000 rpm spindle from Taiwan ; 24 tools Disc type Magazine from Taiwan; 3-Axis Roller linear guideway from Taiwan Hiwin or PMI; Ball leadscrew from Taiwan Hiwin or PMI; Delixi electrical components in cabinet; Safety front door with switch; Automatic chip conveyor & chip bucket (Chain type); High pressure chip flushing system; MPG with emergency stop; USB interface; Rigid tapping; Full closed cover; Automatic lubrication; Coolant system; Work lamp; Tri-color indication lamp; Air gun+Water gun; Heat exchanger in cabinet; Telescopic cover for guide ways; Basic installation sets; English Manual; Tool and toolbox; Auto power off function M30; Optional accessories
Optional accessories:
Direct driven spindle from Taiwan with 8000 rpmSpindle oil coolantShneider electrical componentsAir conditioner for electricity cabinetNitrogen balance cylinder Oil skimmerAutomatic chip conveyor (Spiral type)Tool setter TS27R , brand RenishawWorkpiece measurement OMP60,Brand RenishawCTS 20Bar NSK Bearings
>>
