ISO Certificated, High Quality Wood Sawdust Pellet Press Machine

Product Description

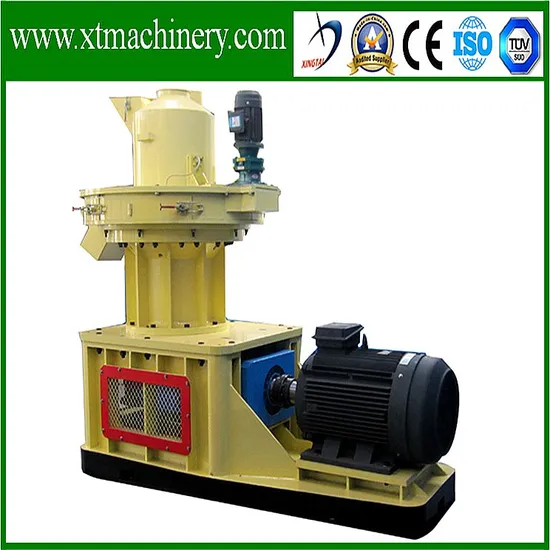

Bio Energy Line Application Ring Die Wood Pellet Mill
In the ring die pellet mill, there are radial slot throughout the die. Powder is fed into the inside of the die and spreaders evenly distribute the powder. Two rollers then compress the powder through the die holes. Two cutters are used to cut the pellets free from the outside of the die. Pellet mill used to produce animal feed, wood pellets, and fuel pellets for use in a pellet stove. Ring die pellet mill generate less wear and tear during pelleting, and work more energy efficient, which is widely adopted in commercial and large scaleproduction lines.
1. Ring Die Wood Pellet Mill Specification:
(1). This pellet machine mainly used for making wood pellets , the pellets used for industry, boiler factories , the machine can be produce φ6.0,φ8.0,φ10.0,φ12.0 pellets.
(2)The machine adopt imported bearings, the motor brand is Siemens or china famous Wannan brand
(3)Driven by gear .more strong than by belt, and the capacity 10% higher than by belt .
(4)the machine also matched the safty equipment , once overload , the safty pin will crack, to protecting the machine lifetime .

Model	Capacity(KG/H)	Power(KW)	Packing Size(mm)	Packing Weight(Kg)
XT-480	1000-1500	55	2250*1250*2200	4800
XT-560	1500-2000	90	2350*1300*2200	6300
XT-760	2000-3000	160	2550*1400*2450	11750
XT-850	3000-4000	220	2750*1400*2560	14700

Before you purchase the Pellet Mill, it is better to inform us the basic information as below:

1. What is the type of your raw material? And what is the size?
2. Raw material moisture rate? You can use moisture meter to evaluate it.
3. What is your expectation on the whole line output?
We Promise: All the machine from XT Machinery will enjoy 2 years warranty period.
XT Machinery, Works for You!

---
