Manual Grinding Machine M618s Metal Turning High Precision Factory Price

Product Description

Product Description

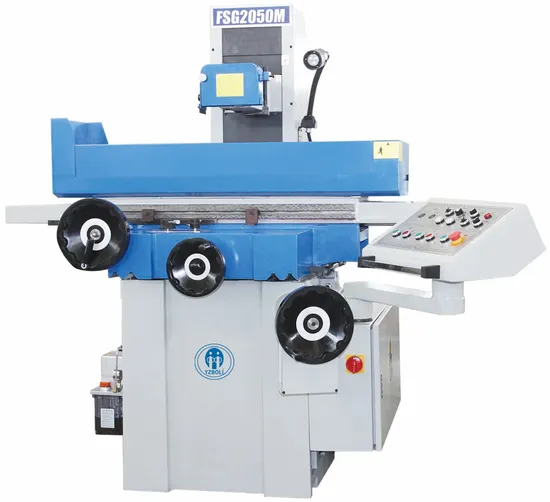

FSG-50 NC Series Surface Grinding Machine
· External hydraulic unit ensures low temperature rising and supply stability power
· Auto-Center lubrication unit
· Very easy to set auto ground program include rough, finish, and sparkout stroke
· Precision grinding spindle runs in maintenane-free, suport by preload high precision angular ball bearing
· Machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy
· The machine bed, table and column are high grade casting piece, which supply strong base of grinding. The slideway is coat with tf wearable material and manual precision scrapped. Product Parameters

Model No.	Unit	FSG-50100NC	FSG-50160NC
table size (W×L)	mm	500×1000(19.69"×39.37")	500×1600(19.69"×62.99")
max. grinding size (W×L)	mm	500×1000(19.69"×39.37")	500×1600(19.69"×62.99")
max. distance from table to spindle center	mm	600(23.62")
magnetic chuck size (optional equipment)	mm	500×1000×1(19.69"×39.37"×1)	500×1600×2(19.69"×62.99"×2)
speed of table longitudinal move	m/min	5~25(0.20"~0.98")
WHEEL HEAD CROSS MOVE
auto intermittent feed	mm/t	1~20(0.039"~0.79")
rapid speed	mm/min	50~1500(1.97"~59.06")
feed of MPG	mm/div	0.005(0.000197")
WHEEL HEAD VERTICAL MOVE
auto feed	mm/t	0.005, 0.01, 0.02, 0.03, 0.04(0.000197", 0.00039", 0.00079", 0.0012", 0.0016")
rapid speed	mm/min	50~500(1.97"~19.69")
feed of MPG	mm/div	0.005(0.000197")
gindwheel size	mm	355×(20~50)×127(13.98"×(0.79"~1.97")×5.00")
motor of spindle	kW	7.5
package size	cm	399×225×228	564×225×228
G.W.	kg	5500	6000

Detailed Photos
FAQ
Q1: What is a grinder? A1: A grinder is a machine tool used for grinding, which is a machining process that involves removing material from a workpiece using an abrasive wheel. Q2: What types of materials can a grinder work on? A2: A grinder can work on a wide range of materials, including metals, plastics, ceramics, and composites. Q3: What are the main types of grinders? A3: The main types of grinders include surface grinders, cylindrical grinders, tool and cutter grinders, and bench grinders. Q4: What are the advantages of using a grinder? A4: Some advantages of using a grinder include precise material removal, improved surface finish, the ability to grind complex shapes, and the capability to remove hardened materials. Q5: What are the factors to consider when choosing a grinder? A5: Factors to consider include the type and size of the workpiece, the required grinding accuracy, the desired surface finish, the power and speed of the grinder, and the availability of specific grinding wheel types. Q6: Can a grinder be used for both rough and fine grinding? A6: Yes, grinders can be used for both rough grinding, which removes a large amount of material, and fine grinding, which provides a smooth and accurate finish. Q7: How is a grinder different from other machining tools? A7: A grinder differs from other machining tools in that it uses an abrasive wheel instead of a cutting tool to remove material. It is primarily used for grinding and finishing operations. Q8: Is safety important when using a grinder? A8: Yes, safety is crucial when using a grinder. Operators should wear appropriate protective gear, follow safety guidelines, and ensure the grinder is properly maintained to prevent accidents and injuries.

---
