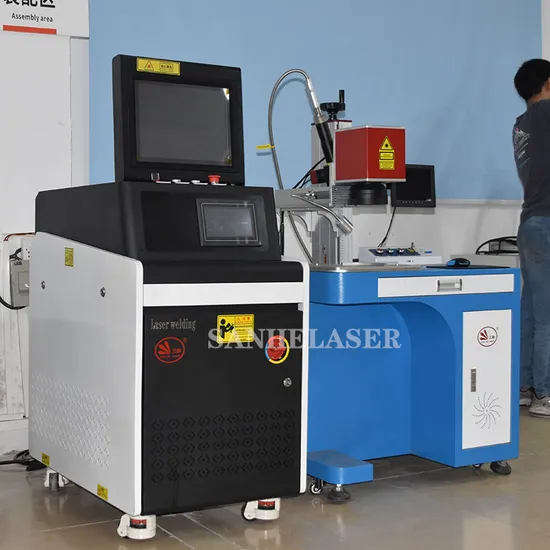

Medical Dense Mesh Bracket Laser Welding Machine Special Welding Machine for Medical Equipment Non-Contact Laser Welding

Product Description

Product Description

Detailed Photos
Our Advantages
Main Features
1.High beam quality quasi-continuous fiber laser, maintenance-free, 90% power saving compared to YAG laser.
2.Fast switching between multi beam paths with high-efficiency beam splitting module.
3.Very cost-effective, simultaneous welding on multiple products.
4.Very flexible, it can be used with a manual working table or automation line.
5.The visual calibration system can quickly calibrate the welding trajectory. The energy monitoring system can quickly provide feedback on the fluctuation of welding energy, and the temperature detection system can check the stability of the optical path in real-time to achieve good welding consistency.
6.The equipment is air-cooled and maintenance-free.

Product Parameters

Model	3HE-QCW60W/100W/150W
Laser wavelength	1070nm
Output optical power	60W/100W/150W
Maximum pulse energy	10 J
Maximum peak power	1000W
Pulse width	0.05-50ms
Operating mode	pulse
Energy volatility	<1.5%
Fiber core	15-25um (optional)
Fiber output number	1 way
Aiming and positioning method cooling method	Laser diode red light indication Air-cooling
Device power	100W
Electricity requirements	AC220V,50/60Hz
Spot size	Minimum 0.05mm

Sample display
Packaging & Shipping
Company Profile
Dongguan Sanhe Laser Technology Co.,Ltd
