Bench Grinder SGC50160NC China Horizontal Surface Grinding Machines
Features:
1. External hydraulic unit ensures low temperature rising and supply stable power.
2. Auto center lubrication unit.
3. Very easy to set auto ground program include rough, finish, and spark-out stroke.
4. Precision grinding spindle runs in maintance-free, support by preload high precision angular ball bearing.
5. Machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.

Specification		SGC-50100NC	SGC-50160NC	SGC-50450NC
Table size		500x1000mm	500x1600mm	500x4500mm
Max grinding size		500x1000mm	500x1600mm	500x4500mm
Max distance from table to spindle center		600mm
Magnetic chuck size		500x1000x1mm	500x800x2mm	500x1000x4mm
Speed of table longitudinal move		5-25m/min
Wheel head cross move	Auto intermittent feed	0-30mm/t
	Rapid speed	0-600mm/min
	Feed of MPG	0.005mm/div
Wheel head vertical move	Auto feed	0.005,0.01,0.02,0.03,0.04mm/t
	Rapid speed	0-600mm/min
	Feed of MPG	0.005mm/div
Grindwheel size		355x(20-50)x127mm
Motor of spindle		7.5kw	7.5kw	11kw
Package size		399x225x250cm	564x225x250cm	1150x238x250cm
Gross weight		5500kg	6000kg	1450kg

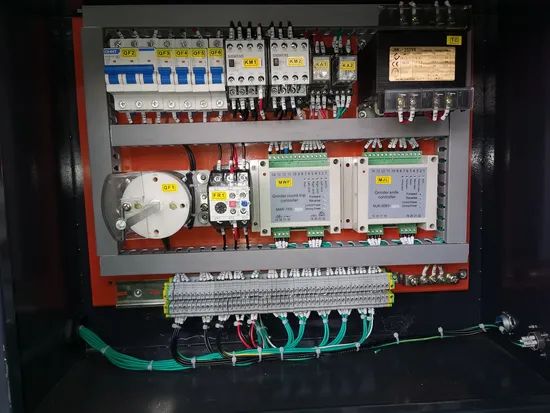

Detailed Photos
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
