Extrusion High Speed 20 L Jerry Can Blow Molding Making Machine

Product Description

Company Profile
Product Description

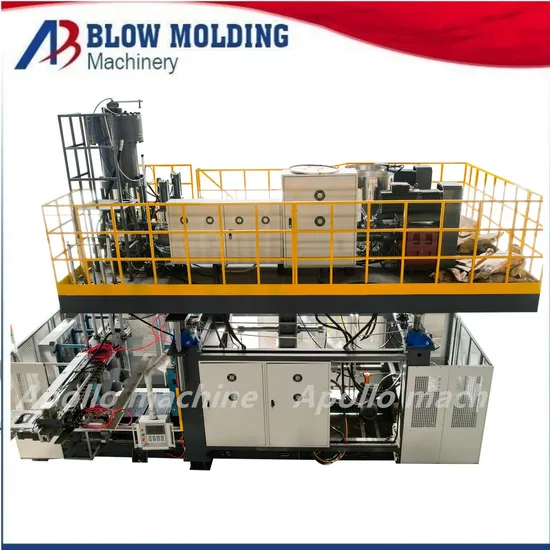

60 Liter HDPE Oil Barrel/ Drum blow molding Making Machinery
ABLD75 extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 25L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 60L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC. Product Parameters

Max. Product volume	60 liters
Dry cycle	450pc/h
Screw diameter	90mm
Screw L/D ratio	25 L/D
Screw drive power	37 KW
Screw heating capacity	18 KW
No.of heating zone	4 zones
Output of HDPE	130 KG/H
Oil pump drive power	30 KW
Clamping force	260 KN
Max.size of mold	450-1000mm
Mold stroke	700X950mm
Max.die diameter	340mm
Die heating power	7.6 KW
Die heating segments	4 zones
Blowing pressure	0.8mpa
Air volume	1.0 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	90 L/MIN

Certifications
Our Advantages
After Sales Service
Contact us

---
