Three-Row Multiple Drilling Machine for Furniture

Product Description

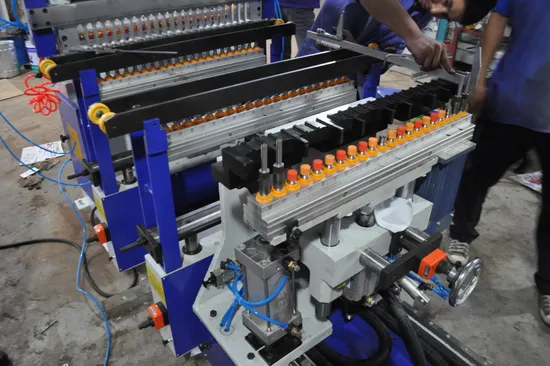

MZB63A Three-Row Multiple Drilling Machine for woodworking

Technical Specification:

Max. diameter of holes	35 mm
Depth of drilled holes	0-60 mm
The number of spindles	63
Center distance between spindles	32 mm
Rotation of spindle	2840 r/min
Total motor size	4.5 kw
Suitable voltage	380 v
Air pressure	0.5-0.8 Mpa
Gas consumption for drilling ten panels per minutes approximately	20L/min Approximately
Max. distance of the two longitudinal heads	1850 mm
Height of working platform off the ground	800 mm
Over size	2600x2600x1600 mm
Packing size	2700x1350x1650 mm
Weight	1260 kg

Product Details:
Certificate:
Our Services: (1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.

(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.

(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
Our company:
Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.

---
