45-Degree Four-Sided Automatic Edge Banding for Industrial Wood Panel Edges

Product Description

Product Parameters

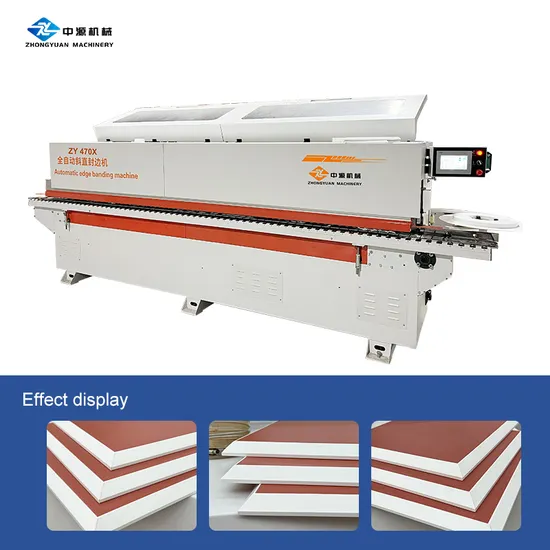

ZY-470X Fully Automatic Four-sided Bevel And Straight Edge Banding Machine:
ZY-470X It is a professional manufacturer of four-sided right-angle edge banding machines. It is a special machine for special use. From milling to forming, it can be completed in one go. The intelligent operation is smooth and the system is stable to ensure the processing speed and quality stability. ZY-470X Fully Automatic Four-sided Bevel And Straight Edge Banding Machine Features:
1.Touch screen control: one-touch parameter switching, automatic recording of output.
2.Automatic feeding: side plate structure, 13m/min high-speed conveying.
3.High-precision milling: diamond pre-milling cutter to maintain cutting accuracy.
4.EVA glue pot: 2000ml capacity.
5.Multiple limit design: ensure the stability of the edge banding and uniform glue coating.
ZY-470X Fully Automatic Four-sided Bevel And Straight Edge Banding Machine Advantages:
1.High efficiency: The interval between continuous board placement is only 3 seconds, which is suitable for mass production.
2.High quality: One-time molding ensures stable edge banding quality.
3.Easy to operate: The clear control screen and automatic functions simplify the operation process.
4.Durability: High-quality materials and precision design are used to improve the durability of the equipment.
5.Multi-function: Suitable for a variety of board materials and edge banding materials, flexible operation.

Edge band thickness	0.8-3mm	Front and rear trimming motor	2.2KW×2 variable frequency speed regulation
Board thickness	15-25mm	Glue box heater	2kw
Conveying speed	13 meters/minute	Auxiliary heating	0.15kw
Conveying motor	1.5Kw32 axis	Electric lifting motor	0.37KW
Milling motor	3.5KW×2 variable frequency speed regulation	Total power	19.5kw
Glue box motor	0.55kw	Dimensions	4310×830×1450mm

Detailed Photos

Product Application

Company Profile

Certifications

FAQ
Q1: I already have an edge banding machine and I would like a trimming machine. Do you have any recommendations?
A: Yes, we have a matching trimming machine. You can choose the product that suits you according to your actual production needs. Of course, we will also ask you some questions, such as plate size, plate thickness, equipment voltage, number of workers, and so on. With so many types of products, there is always one that is suitable for you.

Q2: Can your edge banding machine use PUR adhesive?
A: PUR glue has high requirements for glue pots. We recommend using models such as F14620-3700-3350 for up glue pots, depending on your specific needs.

Q3: Are you a factory or a trader?
A: We are a 20 year source production factory with rich production experience and a total of 8000+customers. We can provide you with thoughtful and accurate after-sales service.

Q4: How should I make the payment?
A: Firstly, you will pay a 50% deposit as a prepayment, and then we will start producing the equipment. After the equipment is completed, I will send you photos and videos, and you can make the remaining payment. After receiving all the payment, we will arrange for the fastest container to ship to you. You will receive the equipment soon, and I will arrange professional technicians to coordinate with you regarding installation issues.

Q5: How long is the delivery time?
A: Conventional equipment takes 10-12 days, customized voltage or other parameters take around 30-45 days.

---
