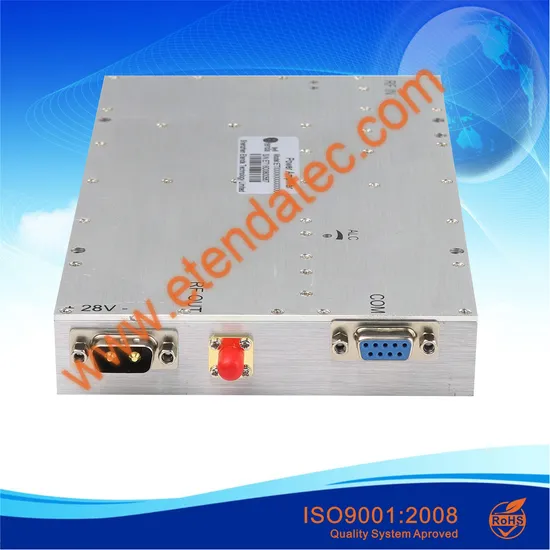

100W Broadband 20-6000MHz 700-2700MHz 500-2500MHz GaN RF Power Amplifier Module

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
ET-PAU100W
Support Network
VHF UHF Hf GSM GPS1.2g 1.5g WiFi2.4G 5.8g
Information content
Data
Certification
CE, ISO, RoHS
Condition
New
Output Power
5/10/20/40/50/100/200/500 Watts
Gain
40- 57dB or Customized
Gain Adjustment Range(dB)
>30/1dB Step or Customized
RF Connector
SMA-50K/N-F or Other Customized
Gain Flatness(dB)
1(Max)
Impedance(Ohm)
50
Power Current
<5.5A
Monitor Interface
RS-485 or Other Customized
Transport Package
Carton Packing
Specification
5/10/20/40/50/100/200/500 watts
Trademark
ETENDA
Origin
Shenzhen
Production Capacity
500PCS/Month

Product Description

100W broadband 20-6000Mhz 700-2700Mhz 500-2500Mhz GaN RF power amplifier module
All the parameters of PA can be customized depend on your request, if you have any customized parameters pls contact us freely
Technical Specifications
Frequency(MHz) 20-6000 or Customized
Input Power(dBm) ≤10dBm or Customized
Output Power(dBm) 50±1(100W )
Gain(dB) 50dB
Inband Ripple(dB) ≤±2 or less
ALC Range(dB) ≥25
Gain flatness ≤3dB
Gain Adjustment range(dB) 0-31dB(1dB step)
Input/Output VSWR ≤1.5:1
Impedance(ohm) 50
Voltage(V) DC+28
Working current 5.5A
Efficiency ≥20%-40% or Customized
Harmonics ODD≥15dBc;EVEN≥15dBc
RF In/Out Connector SMA-Female/N-Female
Monitor interface RS-485 or other Customized
Working Temperature -25~+65 degree
Storage Temperature -40 to +85 degree
Operating Humidity 0 to 90%, relative
Weight ≤1.5KG
Protection High temperature,High VSWR or customized
Monitoring Function Description:
No. Monitoring function Description
1 query PA ALARM When an alarm amplifier failure
2 SWR ALARM Amplifier output reflection is too large, VSWR exceeds 3:1, an alarm is generated
3 Over temperature alarm Module internal temperature exceeds 75 ºC, generates an alarm and turn off the amplifier until the temperature returns to below 65 ºC, re-open the amplifier
4 Over output power alarm When the output power exceeds the nominal full power 2dB is an alarm
5 Input power detection Accuracy of ± 1dB
6 Reverse power detection Accuracy of ± 1dB
7 output power detection Detecting the actual output power amplifier,Accuracy of ± 1dB
8 Temperature detection Detection module operating temperature, detection range: -25 ~ +90 ºC, Accuracy of ± 3 ºC
10 SWR Detecting amplifier output port VSWR range of 1.2 ~ 4.0
11 query and set PA attenuator Set and query Set and query the value of ATT
12 PA switching query and set Query and set the state open tube amplifier
