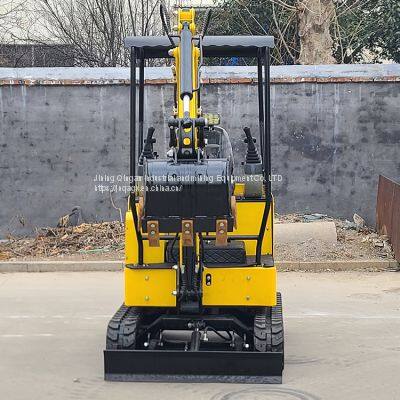

17Mini excavator | |||
| Bucket capacity (m³) | 0.03 | Track width | 180mm |
| Width of bucket (cm) | 40 | Clearance from the ground | 380mm |
| Bucket depth (cm) | 20 | Length of shovel | 1100mm |
| Bucket excavator (KN) | 7.5 | Bulldozing shovel width | 175mm |
| Bucket rod support force | 15kn | Weight | 1650kg |
| Engine | Horizontal bar air-cooled diesel engine/motor | Mining height | 2750mm |
| Engine power | 20kw | Discharge height | 1600mm |
| Walking speed | 2.2km/h | Digging depth | 1600mm |
| Rotary speed | 12rpm | Excavation radius | 2450mm |
| Climbing angles | ＜45° | Radius of gyration | 1100mm |
| Length x width x height | 2520x720x375 | Push and shovel clearance | 120mm |
| Track length | 1142 | Depth of thrust shovel | 200mm |
