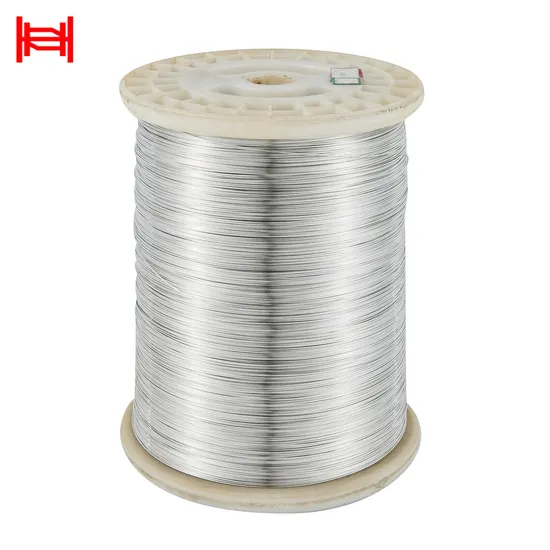

1.2mm 1.5mm Flexible Annealed Easy Welding Tin Plated Copper Wire for Solar PV Cable

US$9.50-11.00 500 kg (MOQ)

Basic Info.

Model NO.
Tinned Copper Wire
Material
Copper and Tin
Shape
Round
Alloy
Alloy
Color
Silvery White
Standard
GB/T, JIS, ASTM
Product Name
Tinned Copper Wire
Certification
ISO9001, RoHS, SGS, Reach
Products Status
Soft, Semihard, Hard
Range of Application
Resistance, Capacitance, Inductance, Cable
Coating Way
Hot Dipped, Electroplating
Feature
High Temperature Resistance
Conductor Material
Tin Plated Copper Wire
Conductor Type
Stranded
Transport Package
Plastic Reel Packaging and Carton Vacuum Packaging
Specification
0.07mm-3mm
Trademark
Jiahua
Origin
Jiangsu, China
HS Code
7408190000
Production Capacity
2000tons/Year

Product Description


Product Advantage:
1. There is no discoloration and dissolution on the plating after high-temperature aging; and the high-temperature aging conditions of 155ºC 16H, 170ºC 4H, 180ºC 2H, 200ºC 1H and so on can be arbitrarily selected.
2. The weldability is excellent; the ferrochrome soldering, wave soldering and reflow soldering can be arbitrarily satisfied.
3. The plating is bright, smooth, uniform and moist; and the binding force and continuity is good.
4. The mechanical properties can be privately customized, to ensure stable and reliable application in the different conditions.
Product Description
Tinned Copper Wire Material:
The basis material for tin coated wire shall be copper wire conforming to the requirements specified in Chinese Industrial Standard GB/T3953-2009 and Japan Industrial Standard JIS3102,and American Industrial Standard ASTM B33 Round Copper Wire For Electrical Purposes.
Product Parameters
Characteristics of tin plated copper wire
DiameterToleranceOvality maxThickness of CoatingElongationTensile StrengthMin. Bend PropertyElectricresistivty
Soft wireSemi hard wireHard wireSoft wireSemi hard wireHard wireWeighttimes
mmmmmmµm%kg/mm2g Ωmm2/m
0.3±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.32±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.36±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.38±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.4±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.41±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.42±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.43±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.44±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.45±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.46±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.47±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.48±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.49±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.5±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.52±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.53±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.54±0.010.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.55±0.0150.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.56±0.0150.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.58±0.0150.015±2≥2013~23≤1220~2820~28≥40250≥5≤0.0190
0.6±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.62±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.65±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.66±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.68±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.7±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.72±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.74±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.75±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.76±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.78±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.79±0.0150.015±2≥2013~23≤1220~2820~28≥40500≥6≤0.0182
0.8±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
0.81±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
0.82±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
0.85±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
0.9±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
0.95±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
0.98±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.02±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.03±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.05±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.1±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.13±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.15±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.2±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.25±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.3±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.35±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.38±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.4±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.45±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.5±0.0150.015±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.6±0.020.0155±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.62±0.020.0155±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.65±0.020.0155±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.7±0.020.0155±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.71±0.020.0155±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
1.8±0.020.0155±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
2±0.020.0155±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182
2.13±0.020.0155±2≥2513~24≤1220~2820~28≥40500≥6≤0.0182

Application
The products are widely used in the industries of carbon film resistors, metal film resistors, metal oxide film resistors, fuse resistors, wire-wound resistors, glass glaze resistors, piezoresistors, thermistors, non-inductive resistors, photoresistors, thermal fuses, current fuses, capacitors, jumper wires (jumpers), inductors, transformers, diodes, high-temperature wires, marine cables, triple insulated wires, gas appliance temperature sensors, welding wires, braided thread, grounding rod, flexible flat cables (FFC) and so on.
Company Profile
Certifications
Our Partners
The customers are distributed in Yangtze River Delta, Pearl River Delta, Bohai Bay area, Haixi Area, the Southwest and Guanzhong Area. Our products are also directly exported to countries and regions such as the United States, Mexico, Brazil, Argentina, Germany, France, Poland, Portugal, Italy, Australia, South Korea, Japan, Southeast Asia, South Asia, the Middle East, and Africa.
Packaging & Shipping
The packaging methods are PP barrel, carton vacuum packing, PVC shaft packing, iron tray packing, iron frame closing packing, tight closing packing, which are flexible and diverse and can fully meet the production needs of customers.
