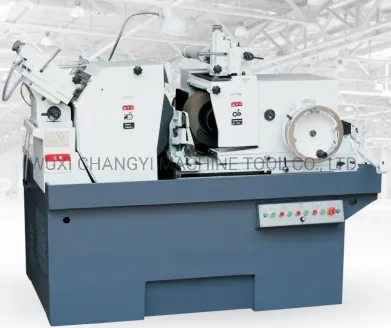

| MK1080B |
| Machine cuting mechanism is equepped with imported reducer and ball screw combined with imported servo motor. |
| Mixed dresser configuration imported linear guide and ball screw with imported servo motor,repairable products accordingto customer's different demand,circular arc,linear multiple steps,program programmed to automatically fix the size of the finishing cut at the same time institutions can compensation at the same time,the finishing times can be set freely and can be combined with automatic loading device to realize unmanned operation,king kong pen trimming precision can reach 0.001mm,trimming of high precision,stable performance. |
| CNC system selection of man-machine interface control,simple operation,humanization |
| The layout of he machine adopts the single-side movement mode of regulating wheel frame |
| Sand wheel shaft adopts owerhang structure |
| Guide wheels shaft adopts double support rolling bearing structure,with high rotary accuracy and good cutting rigidity. |
| Regulating wheel drive adopts frequency conversion motor and frequency converter to realize stepless speed regulation. |
| The cooling system is equipped with magnetic separator. |
|
| Gringding dia(mm) | Thru-feed | 5~80mm |
| Plunge feed | 5~80mm |
| Grinding length(mm) | Thru-feed | 180mm |
| Plunge feed | 220mm |
| Reg.wheel swivel angle(°) | In vertical plane | -2° ~ +5° |
| In horizontal plane | 0° ~+3° |
| Height from centerline of gri.wheel®.wheel to workrest(mm) | 210mm |
| Machining accuracy | Roundness(μm) | 1.5μm |
| Cylindricity(μm) | 2.5μm |
| Gri.wheel spec(mm) | PSA500*150*305mm |
| Reg.wheel spec(mm) | PSA300*150*127mm |
| Gri.wheel speed(r/min) | 1300r/min |
| Reg.wheel speed(r/min) | 5-250r/min |
| Adjusting reg.wheel | 300 |
| Two gri.wheel distance(mm) | Max volumn | 510mm |
| Min volumn | 305mm |
| Total power of machine(kw) | 19.2kw |
| Machine weight (kg) | 3650kg |
| Overall dimensions(mm) | 1940*1630*1500mm |
