US$36,000.00-37,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Cotton, Rice, Corn, Fruit, Wheat, Soybean, Tubers, Straw
Portable Harvester Type
Side Hanging Type
Certification
QS, GMP, ISO9001:2008, CE
Application Field
Agriculture, Forestry
Name

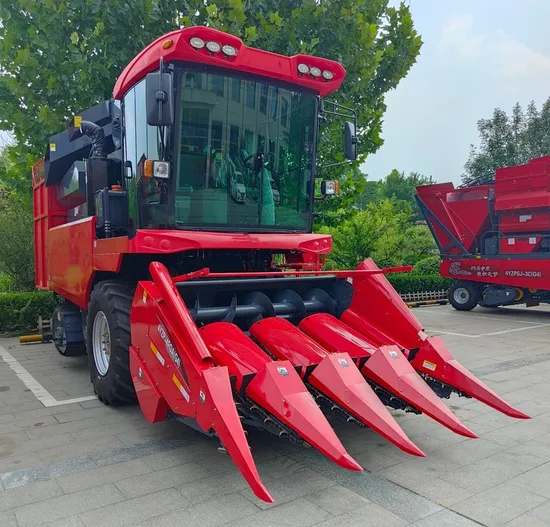

4yzp-4fd Self Propelled Corn Harvester
Structural Style
Wheeltype/Ear Picking/Peeling/Straw Returning to F
Engine Model
Yca07p280-T400
Min.Ground Clearance
240mm
Min Ground Cleaqrance
330mm
Track Ground Pressure
≤35kg/HEC
Engine Manufacturer
Famous Manufacturer(Changchai)
Engine Type
Six-Cylinder, in-Line, Four-Stroke, High Pressure
Working Efficiency
0.4~0.65hm2/H
Transport Package
Large Cabinet
Specification
5cube 3500kg
Production Capacity
1000pieces/Year
Product Description
Combine Harvester Main Technical Parameters
Advantages:
Compact structure, excellent performance,
High threshing ability, low broken rate. Low lost rate
Thorough clearance with double shakers for re-threshing
Famous brand engine with large power and stable performance
Main specifications:
| 4YZP-4FD Corn harvester technical parameter |
| No | Item | Unit | Design Value |
|
| 1 | Name | / | 4YZP-4FD self propelled corn harvester |
| 2 | Structural style | / | Wheeltype/ear picking/peeling/straw returning to field |
| 3 | Engine Model | / | YCA07P280-T400 |
| 4 | Engine | / | Yuchai |
| 5 | Engine type | / | Six-cylinder, in-line, four-stroke, high pressure common rail |
| 6 | Engine power | kW | 206 |
| 7 | Engine RPM | r/min | 2200 |
| 8 | Dimension(L×W×H) | mm | 7120×2780×3400 |
| 9 | Total weight | kg | 9220 |
| 10 | Working rows | Row | 4 |
| 11 | Row spacing | mm | 600 |
| 12 | Working width | mm | 2380 |
| 13 | Min.ground clearance | mm | 240 |
| 14 | Working speed | km/h | 2.0~6.0 |
| 15 | Working efficiency | hm2/h | 0.4~0.65 |
| 16 | Fuel consumption | kg/hm2 | ≤35 |
| 17 | Placement of ear conveyor | / | Middle |
| 18 | Ear conveyor type | / | Chain scraper |
| 19 | Ear picking mechanism type | / | Snapping roller |
| 20 | Snapping roller | / | 8 |
| 21 | peeling mechanism | / | Rubber Roller |
| 22 | No.of peeling rolls | / | 20 |
| 23 | Cutting table | / | Horizontal type |
| 24 | No.of Fan | unit | 1 |
| 25 | Fan type | / | Centrifugal+axial flow pump |
| 26 | Fan diameter | mm | Φ660+Φ220 |
| 27 | Unloading type | / | Hydraulic side-dump |
| 28 | straw returning machine type | / | flail chopper |
| 29 | Position of straw returning machine | / | center |
| 30 | width of straw returning machine | mm | 2300 |
| 31 | Cabin type | / | General |
| 32 | Transmission mechanism type | / | Mechanical+HST |
| 33 | Drive type | / | Two-wheel drive |
| 34 | Drive mode (F/R) | | F: Mechanical + hydraulic drive R:None |
| 35 | Brake type (F/R) | / | F: Disc type/R: drum type |
| 36 | Wheel base | mm | 3000 |
| 37 | Guide wheel tread | mm | 1700 |
| 38 | Drive wheel tread | mm | 1920 |
| 39 | Guide tire | / | 400/60-15.5 |
| 40 | Driving tire | / | 15R24 |
Product advantage
Short ones can be harvested without rows, which is suitable for early and mid-term corn plants.
The long ones are harvested in opposite rows, which is suitable for mid- to late-stage corn plants.
Picture show
Company proflie
Lingke Holding Group is a manufacturing enterprise engaged in R&D, production and sales of high-end non-road machinery and equipment. It was established in 2013. The total planned area of the group is more than 1,00 mu. It is a key investment attraction of the municipal government, a major
provincial project, and a priority project for new and old kinetic energy.
Honor
Workshop
Customer visit
>>
