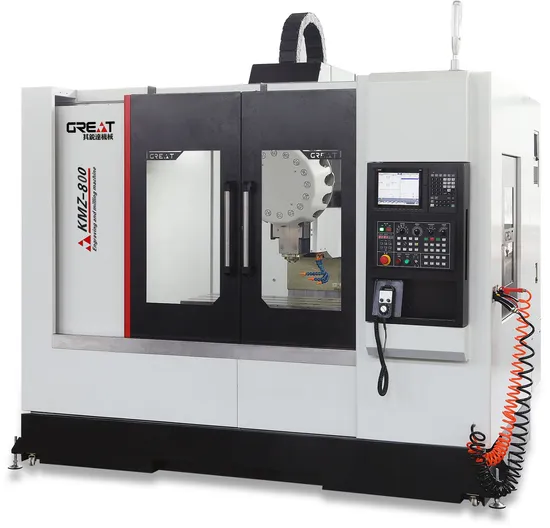

Kmz-800 Drilling and Tapping Machine CNC Machine Center

Product Description

KMZ-800 Drilling and Tapping Machine Product Description
1.UsingMeehanite castings to strengthen the internal structure. All of the products have been tempered to ensure high stability with no deformation.
2. The linear rail is imported to provide high-speed and smooth motion performance, which is suitable for high-efficiency processing of products.
3. The three-axis guide rail is using fully enclosed stainless steel protective cover, which has good chip removal protection performance.
4. Using high-power servo motor to drive the feed to ensure high load capacity.
5. Dust-proof electrical box and electrical components are using foreign brands, with good stability and good dust-proof effect.
6. The wire holes are all waterproof, effectively preventing oil and gas from entering the box, ensuring the service life and performance reliability of the original electrical components.
7. Each machine tool is subjected to laser and circular inspection according to international standards to ensure the machining accuracy.
Detailed Photos

Product Parameters

Items		Unit	KMZ-500	KMZ-600	KMZ-800	KMZ-1000	KMZ-1300	KMZ-1600	KMZ-650
Axis travel	X axis travel	mm	500	600	800	1000	1300	1600	600
	Y axis travel	mm	400	400	500	500(or:600)	550	550	400
	Z axis travel	mm	300	300	330	330	420	420	500
Workbench	Area	mm	650×400	700×420	1000×500	1100×500	1400×500	1700×500	800×400
	Weight capacity	kg	250	250	350	400	400	400	350
	T-slot size	/	3-14*125	3-14*125	5-18*100	3-18*150	4-18*125	4-18*125	3-18*125
Distance	Distance from the end of spindle to workbench	mm	150-450	150-450	150-480	150-480	150-720	150-720	100-600
	Distance from the center of spindle to column guideway	mm	420	420	546	550	580	580	460
Spindle	Inner hole taper	/	BT30	BT30	BT30	BT30	BT30	BT30	BT30
	Spindle speed	rim/min	15000(or:20000)						18000(Electric spindle)
	Spindle power	kw	3.7/5.5	3.7/5.5	3.7/5.5(5.5/7.5	5.5/7.5	5.5/7.5	5.5/7.5	7.5
Feed	XYZ three-axis rapid feed	m/min	48/48/48			36/36/36			48/48/48
	Three-axis cutting feed	mm/min	1-10,000
Toolmagazine	Tool magazine capacity	/	16(op:21)						16
	Heaviest tool weight	kg	3						5
	Maximum tool length	mm	200						250
	Tool magazine form	/	Turnover tool magazine						Arm type tool magazine
Mechanical	Machine weight	/	3000	3300	3800	4500	5200	5500	4000
	Mechanical dimensions	/	1760*2520*2380	1860*2520*2380	2670*2430*2630	3070*2430*2630	3770*2475*2730	4470*2475*2730	2140×1900×2550

Company Profile
Ningbo GREAT Machine Tool Co., Ltd. is a modern scientific and technological enterprise specializing in the production of CNC Machinewith brand name Great. Our company is in the Baojia Industrial Park of Ningbo City, adjacent to the airport, highway, railway station, and bus station with very convenient transportation.Our main products including: Vertical machining centers, high-speed drilling and tapping machines, CNC engraving and milling machines, gantry machining centers, horizontal machining centers, etc. Complete specifications, diversified configurations can be selected according to your different needs. We offer customized products according to your needs, cost-efficient products processing solution, importing automation, replacing labour by machines, etc.Our products are suitable for producing auto accessories, textile Accessories, digital products, medical instruments, mold manufacturing, aluminum casting and so on.We import inspection equipment from Italy and Britain and conduct complete inspection for each machine, including machine tool geometry inspection, laser interference inspection, full tool test, spindle motor dynamic balance correction, etc. To ensure the high precise and stable quality of our products. In addition, we provide best after-sales service. Our professional teams maintain close contact with customers and provide technical support at any time if necessary.We adhere to the Diamond quality concep tand keep working on it to provide best products for each customer.

---
