CNC Gear Hobbing Machine for Processing Worm Gear Spure Gear and Helical Gear

Product Description

Direct drive high speed CNC 5-axis gear hobbing machine for 0.5mm to 5mm module
Advantage: 1.Integrated chip conveyor design to save space
2.Process cylindrical, helical and small taper drum gears, which can easily realize 45 angle tooth profile processing.
3.High speed directly driven servo motor equips with B and C axis, increase machining precision and machining efficiency a lot
4.Main casting of machine bed and column are made of Mehana high-strength structure and equipped with rectangular large-surface plastic-coated lead rail.The structure is compact, dynamic and static.
5.Machine's driven chain is short to ensure precision, which can reach Grade 6
6.Spindle adopts high-power servo motor, which can realize constant torque stepless speed change within the rated speed range.
Machine Parameter Description

Description			Parameter	Unit
Processing capacity	Coordinate Axis Number		5	axis
	Processing gear type		spur gear,helical gear, worm wheel, spline
	Procision		Mass Production Grade 7 (GB/T10095-2008)
	Workpiece	Maximal diameter	500	mm
		Maximal cylindrical helical gear diameter	370 (Helix angle 30°) 250 (Helix angle 45°)	mm
		Minimum module	0.5	mm
		Maximal module	5	mm
		Maximal face width	350	mm
		Teeth range	≥10	teeth
	Tool	Maximal rotating speed	1000	r/min
		Maximal tool length	120	mm
		Maximal hob diameter	120	mm
		Tool arbor diameter	22,27,32	mm
		Tool procision accuracy	≤10	mm
		Hob shifting	Automatic
		Hob shifting travel	150	mm
	Spindle	Z-slid travel	500	mm
		Hob head swivel angle	±45	°
	Turntable	Z-slide travel	180	mm
		Turntable diameter	150	mm
		Turntable maximal rpm	240	r/min
Power	Main motor power		15	KW
	Total power		28.5	KW
Size&Weight	Floor space		2200x2300x2800	mm
	Machine weight		3000	kg

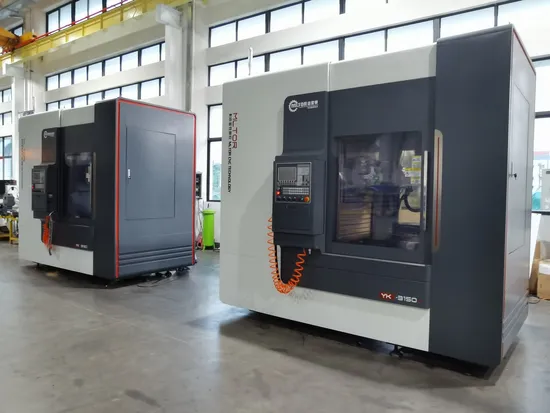

The photos of machine
