Basic Info.
Molecular Principal Chain
Carbon Chain Polymer
Product Name
PVC Resin Sg3/5/8 700/800/1000/1300
Application
Pipe, Shoes, Cable Wires and So on
Material
Cac2 and Petroleum
Transport Package

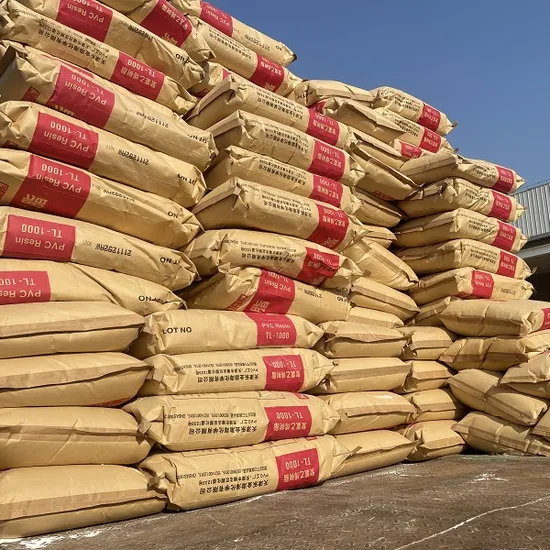

25kg/Bag
Trademark
hebeichangsheng
Production Capacity
100000000
Product Description
Product Description Polyvinyl chloride is high molecular compounds polymerized by VCM with structural
element as CH2-CHCLn,degree of polymerization usually as 590-1500.In the process of re-polymerization ,affected
by kinds of factors such as the polymerization process, reaction conditions, reactant composition, additives etc.
It can produce eight different types of PVC resin and the performance is different. According to residual content
of VA in polyvinyl chloride resin, is can be divided into :commercial grade, food hygiene grade and
medical application grade in appearance,polyvinyl chloride resin is white powder or pellet.Its average
density: 1.40g/cm². Product Parameters
| Items | SG8 | SG7 | SG5 | SG4 | SG3 |
| Average degree of polymerization | 650-740 | 750-850 | 980-1080 | 980-1080 | 1250-1350 |
| K value | 55-59 | 60-62 | 66-68 | 66-68 | 71-72 |
| Viscosity | 73-86 | 87-95 | 107-118 | 107-118 | 127-135 |
| Foreign Particle | 16max | 16max | 16max | 16max | 16max |
| Volatile Matter,% | 30max | 30max | 30max | 30max | 30max |
| Apparent Density,g/ml | 0.53min | 0.53min | 0.48min | 0.53min | 0.48min |
| 0.25mm Sieve Retained,% | 2.0max | 2.0max | 1.0max | 1.0max | 1.0max |
| 0.063mm Sieve Retained,% | 97min | 97min | 95min | 98min | 98min |
| No.of Grain/400cm2 | 20max | 20max | 10max | 10max | 10max |
| Plasticizer absorption of 100g resin,g | 14min | 16min | 25min | 19min | 28min |
| Whitene S S Degree 160 ºC 10min,% | 80 | 80 | 80 | 80 | 80 |
| Residual Chlore Thylene Content,mg/kg | 1 | 1 | 1 | 1 | 1 |
| Property | Average polymerization degree | Bulk density,g/ml | Whiteness(160ºC,10min),%>= |
| 1300 | 1221-1380 | 0.46-0.54 | 78 |
| 70 |
| 1000 | 981-1080 | 0.51-0.57 | 78 |
| 70 |
| 800 | 751-850 | 0.54-0.60 | 78 |
| 70 |
| 700 | 651-750 | 0.53-0.61 | 75 |
| 70 |
Brands Our Advantages
PVC resin has a wide range of applications and can be used in the production and processing of
PVC hard products, soft products, coatings and adhesives.
SG-3 is suitable for cable and wires, films, high-grade artificial leather, etc.
SG-5 is suitable for the processing of hard products such as profiled materials, pipes and hard
plates.It can also be applied to film, leather cloth, plastic sandals, soles, and various soft products.
SG-7 is suitable for the processing of transparent sheet, packaging, foam board and other products.
SG-8 is suitable for packaging transparent sheets, plates, elbows of high-strength pipe fittings
and other products.
