10000bph Automatic Plastic Bottle Unscrambler Machine (LP-16)

Product Description

Plastic Bottle unscrambler machine:
1. Suitable for unscrambling disorder polyester bottles
2. Make them order and in one line.
PET Bottle Unscrambler/Settling Machine/Sorting Equipment

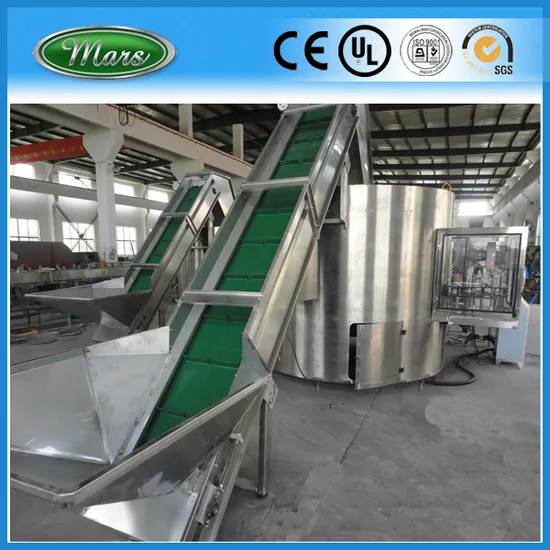

This bottle unscrambler machine is suitable for unscrambling disorder polyester bottles, make them order and in one line, then discharge them by vacuum conveyor.
Specifications:
1) Suitable for unscrambling disordered polyester bottles.
2) Aligns bottles and discharges them by vacuum conveyor.
3) PLC program controlled.
4) Automatic.
5) High speed operation.
6) Easy to combine with all kinds of fillers or filling production lines.
Technical parameter:

Model	LP-16
Working positions	16
Production capacity (500ml)	10,000-12,000B/H
Suitable bottle specification	Diameter,φ40-100 Height: 150-320mm
Gas source pressure	0.7Mpa
Gas consumption	1.5mP3P/min
Main motor power	1.5Kw
Bottle elevator power	0.75Kw
Blower power	2.2Kw
Air conveyor	2.4M
Bottle loading conveyor	5-6M
Weight	3400Kg
Overall dimension (L x B x H)	Φ2200 x 2340mm

Main Configuration:
PLC: MITSUBISHI/OMRON
Inverter: MITSUBISHI/OMRON
Touch screen: THINGET, Taiwan
Photoelectric: AUTONICS, Korea
Contactor: SCHNEIDER, France
Air conveyor: Stainless steel, 2.4m

---
