Premium GYTA Optical Fiber Cable in Durable HDPE Drum

Product Description

Cross Section

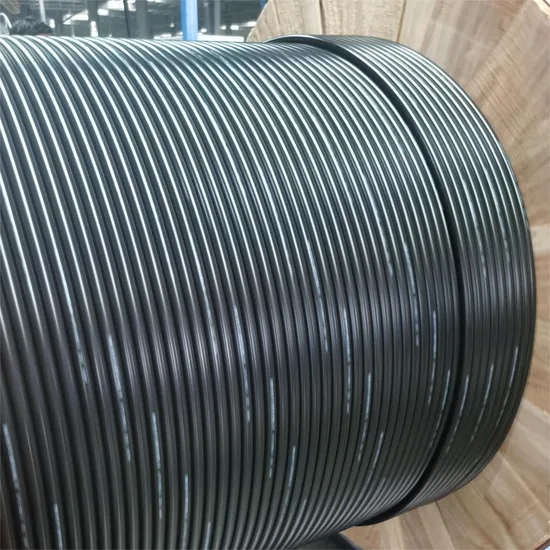

Detailed Photos

Product Description
The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member to form the cable core. The cable core is filled with water blocking compound and PE inner jacket is extruded. Then the aramid yarn armored around the inner jacket to reinforce . Finally, PE or AT outer jacket is completed.
• It can be installed without shutting off the power.
• Light weight and small diameter reducing the load caused by ice and wind and the load on towers and back-props.
• Large span length and the largest span is up to 1000 meters
• Good performance of tensile strength and temperature performance
Application
Duct / Non Self-supporting Aerial Installation
Product Parameters

Counts	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units(Tubes or Fillers)	5	6	5	6	8	10	12	18	24
Cable Diameter(mm)	9.2*16.2	9.6*16.6	9.7*16.7	10.2*17.2	11.5*18.5	12.8*19.8	14.0*21.0	14.3*21.3	16.2*23.2
Weight(Kg/km)	145	160	160	177	203	230	260	263	312
Fiber Type	G652D G655 G657 50/125 62.5/125
Steel wire(mm)	1.0*7
Tensile Strength(N)	Long/Short Term:1000/3500
Crush Resistance(N/100mm)	Long/Short Term:1000/2200
Bending Radius(mm)	Static/Dynamic:10D/20D
Temperature(ºC)	Storage /Operation:-40ºC~70ºC

Our Advantages

Packaging & Shipping

FAQ
1.Are you the real manufacturer?
Yes. We are the real manufacturer in Chuzhou Anhui Porvince, China.

2.What is your fiber brand ?
We have our own fiber production lines and the preforms are from YOFC, FIBERHOME.

3.Can you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5.Which kind of certification you have ?
ISO9001, ISO14001

6.What is your delivery time?
Usually within 7-10 working days

7.What about your annual production capacity?
Outdoor Fiber Optic Cable : annual output is 35000 KM;
FTTH/FTTX/FTTA Cable: annual output is 1200000 KM per year;


8.What is your payment way?
T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your drawing.

---
