Individual Addressable Pixel 5V Ws2812b 144LEDs Digital LED Strip Lighting

Product Description

Individual addressable pixel 5V ws2812b 144LEDs digital led strip lighting

Detailed Photos
Features:
1. Every LEDs can be cut at marked intervals and can be rejoined. The normal packing is 5meters/reel.
2. Both waterproof (IP68 or IP65) or non-waterproof are available
3. Colors: Red, yellow, blue, green, white, warm white and RGB color are both available.
4. Low Power Consumption. These strips are extremely energy-efficient,
This low-voltage Strip produces little heat, very safe to use and easy to install, lifespan of over 50,000 hours, with CE& ROHS certificate that strictly ensures that no toxic materials were used in its manufacture.
5. The Flexible Strips have a 120° wide-angle beam that ensures they light evenly and do not cast shadows on surfaces and boasts a desirable seamless glow.
6. Easy installation. This LED tape comes with a 3M adhesive backing which allows easy mounting virtually anywhere. Because they can be cut, they fit well into installations and are perfect for use in display cases.

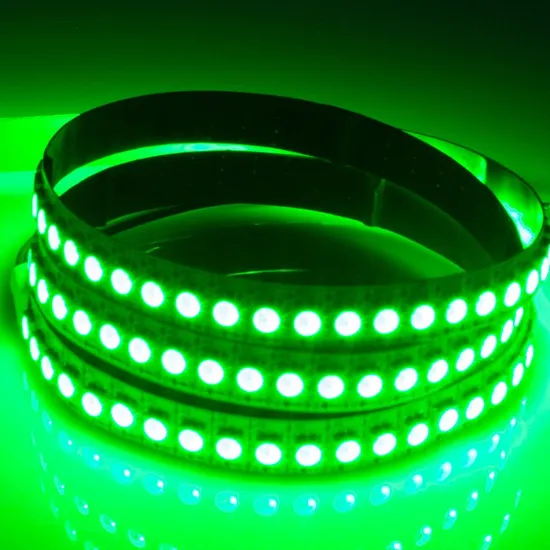

Close Picture:
Application
1) Building (architecture or home) decoration, kitchen-cabinet lighting, under-cabinet lighting, and bathroom lighting,
2) Car decoration, coves, valences, doorways and other hard-to-light nooks and crannies.
3) Amusement park and theater lighting
4) Emergency hallway lighting
5) Shopping mall, restaurant, hotel, meeting room and advertisement signs backlighting
LED Strip List:

Part Numbe	Color	LED Parameter	Wattage	Size	Power	OEM/Customize?
3528-30LED	R/G/B/Y/W/WW	SMD3528/30LED	2.4W/M	8*1000MM	DC12V/DC24V	YES
3528-60LED	R/G/B/Y/W/WW	SMD3528/60LED	4.8W/M	8*1000MM	DC12V/DC24V	YES
3528-120LED	R/G/B/Y/W/WW	SMD3528/120LED	9.6W/M	8*1000MM	DC12V/DC24V	YES
5050-30LED	R/G/B/Y/W/WW/RGB	SMD5050/30LED	7.2W/M	10*1000MM	DC12V/DC24V	YES
5050-60LED	R/G/B/Y/W/WW/RGB	SMD5050/60LED	14.4W/M	10*1000MM	DC12V/DC24V	YES

5630-60 LED	white	SMD5630/60LED	18W/M	8*1000MM	DC12V/DC24V	YES
2835-60 LED	R/G/B/Y/W/WW	SMD2835/60LED	12W/M	8*1000MM	DC12V/DC24V	YES
2835-120 LED	R/G/B/Y/W/WW	SMD2835/120LED	24W/M	8*1000MM	DC12V/DC24V	YES
2835-240 LED	R/G/B/Y/W/WW	SMD2835/240LED	36W/M	12*1000MM	DC12V/DC24V	YES
3014-60 LED	R/G/B/Y/W/WW	SMD3014/60LED	12W/M	10*1000MM	DC12V/DC24V	YES
3014-120 LED	R/G/B/Y/W/WW	SMD3014/120LED	24W/M	10*1000MM	DC12V/DC24V	YES

Digital RGB led strip (WS2011/WS2812B) Specification/Items:

Business model	Manufacture
Item Model	MS-WS2812B-60
LED Quantity	60PCS/M,300PCS/Reel
IC Type	WS2812B (IC Built in LED)
Wattage	18W/M
Pixel/m	60pixel/m,300pixel/reel
PCB Width	10mm
Length/Reel	5M
Working Voltage	DC5V
Package	Anti-Static Bag
Light Color	Multi-Color, digital RGB,Every LED individual Control
IP Grade	IP20:Non waterproof IP65:Soft glue waterproof IP67:Soft tube waterproof IP68:Soft tube+glue waterproof
Glue Type	Expoy:Non-anti-UV,Stay clean for short time,smell Silicone:Anti-UV,Stay clean,soft,smell-less PU: Anti-UV,Stay clean,soft,smell-less
PCB Color	White ,Black
Certification	CE RoHS
Cut size	DC5V (every LED per cut), DC12V (every 3LED per cut)
Installation	IP20 with 3M Adhesive tape on the back of PCB IP65 with 3M Adhesive tape on the back of PCB IP67 with plastic clip and screw IP68 with plastic clip and screw
	Many other types IC for choose

Addressable LED Strip with ,IC WS2811 WS2812,Individual Pixel Control
A	MS-WS2812B-30	30pcs SMD5050/M	9W/M	DC5V	30 Pixel/M	WS2812B	Dream Color RGB	IP20 IP65 IP67 IP68
B	MS -WS2811-30	30pcs SMD5050/M	7.2W/M	DC12V	10 Pixel/M	WS2811	Dream Color RGB	IP20 IP65 IP67
C	MS-WS2811-48	48pcs SMD5050/M	11.5W/M	DC12V	16 Pixel/M	WS2811	Dream Color RGB	IP20 IP65 IP67
D	MS-WS2811-60	60pcs SMD5050/M	14.4W/M	DC12V	20 Pixel/M	WS2811	Dream Color RGB	IP20 IP65 IP67
E	MS-WS2812B-60	60pcs SMD5050/M	18W/M	DC5V	60 Pixel/M	WS2812B	Dream Color RGB	IP20 IP65 IP67
F	MS-WS2812B-144	144pcs SMD5050/M	43.2W/M	DC5V	144 Pixel/M	WS2812B	Dream Color RGB
