Sandwich Hamburger Food Wrapper Paper Roll to Sheets Cutting Machine Oil Grease Paper Roll Sheeter Cutter Machine

Product Description

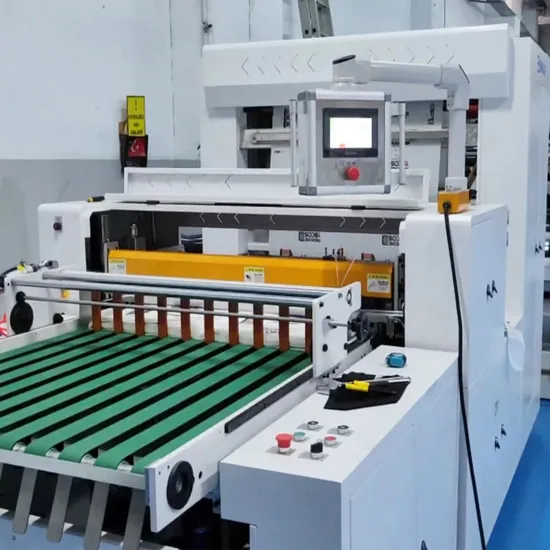

Sandwich Hamburger Wrapper Paper Roll to Sheets Cutting Machine with Conveyor Belt and Automatic Counter Paper Sheeter Machine
Product Description:
Hamburger wrapper paper and sandwich wrapper paper are used to wrap food in fast food restaurants chain brands. They are lightweigth paper and printed customize logo patterns. Binbao SCL series paper roll to size sheets cutting machine adopt guillotine type cross cutting knife and equip with printing markd register to improve cutting precision. The machine can stable cut and stack lightweight paper well. We also can make online printing unit and online packaging unit for the cutting machine.
Usage:
The series model machines have a conveyor belt table,which is better to cut thin,light and slip paper rolls,such as sandwich paper,hamburger wrapper paper,and so on.Besides,it also can cut general paper,cardboard paper,pe coated paper,pvc,pet,pp and so on plastic film material from jumbo roll to sheets form. We had export the model machine to Vietnam, Indonesia, Thailand, Malaysia, UAE, Egypt, Algeria, Tunisia, and so on country customers.They can use the Binbao company SCN series paper sheets cutting machine to cut food wrapping sheets for sandwich,hamburger,fruit,to make various type paper bags,to make book or files pvc covers,to make medical x-ray film,and cut paper cups fan sheets or in mould label sheets for packaging material.
Feature: 1.Machine Rack: The machine rack adopt Shanghai BaoSteel company as steel raw material. 16mm thickness machine body wall make the machine more stronger and running stale. 2.Aluminum Rollers: All aluminum rolls installed in the machine,which are being dynamic balance testing. Material can smoothly move in these rollers without any scratching. 3.PU-Rollers: The PU rollers are high abrasive resistance,which can insure machine feeding precision. 4.Cylinder Lifter: The jumbo roll material can be easy lift up by the cylinder from the ground. Save labor and easily operating the cutting machine. 5.Motors: The machine adopt one set servo motor and two sets asynchronous motors to drive.It make the machine working with a high level cutting precision(0.2mm error range) 6.Control System: The SCL series paper cutting machine adapt intelligent and easy operating control system with Japanese brand PLC. It have automatic counting sheets,automatic stop machine after cutting per batch,automatic detect mother rolls diameter,automatic tension control and so on functions. In the touch screen,you also can check machine working condition parameters. 7.Static Elimination:The machine have statics bar to eliminate the statics influence. 8.Automatic counting: The machine will automatic count the cutting sheets quantity and stop when it reach your desired sheets quantity setting in the PLC. 9.Non stop: When the operator collect the finished cutting sheets,the machine don't stop and continue cut paper sheets.
Application:
Parameter:

Name	SCL series
Mother Roll Width(Max)	800-1400mm
Mother Roll Diameter(Max)	1400mm
Mother Roll Weight Capacity	1200kg
Paper Core Size	3inch(customize available)
Cutting Length	100-600mm
Thickness Range	18-400gsm(depend on material)
Cutting Precision	±0.2mm
Cutting Speed	120-150 cuts per minute

Detail Images:
Customer Factory Tour:
This is a well-known public company for paper products processing. They have three production bases, and we are visiting their label material project base in Shantou City, Guangdong Province today. In this production base, they have a hot melt adhesive coating line, a water-based adhesive coating line, and a thermal paper coating line, plus they have purchased five slitting and rewinding machines. Their products cover, thermal paper, self-adhesive label paper, release paper, Grassian paper, etc.
After-sale Service:
Exhibition Scene:
Company Profile:
Wenzhou Binbao Machinery Co.Ltd leads in manufacturing of paper&film jumbo roll to narrow rolls slitting rewinding machine and roll to sheets cutting machine,for printing and packaging products industry. We develop and build the machinery and the control systems that manage the machinery. It is our mission to offer high level quality machines for the industry. The three founders of the company are all passionate about machinery and have been working in the packaging and printing machinery industry for more than 10 years. They enjoy constantly updating and improving the machinery, and derive pleasure and fulfillment from it. It is because of their love that they have always led the company to develop new models and improve the performance of the machinery, which has been unanimously approved by users all over the world. After more than 10 years of development, the company's production capacity has reached 400 units/year, with an annual sales of more than 10 million dollars.The control systems that manage the machinery. It is our mission to offer high level quality machines for the industry.

FAQ:
Q: What should I do to find the appropriate machine? A: You should offer some info. 1. Material name 2. Material thickness or gsm 3. Max. diameter and width of mother roll 4. Minimum width of finished roll5.Maximum rewinding diameter You also can send your message of your slitting processing to our sales. They will help you find the best solution. Q: How can I operate the machine? A: Our machine is very easy to operate. We also offer the manual and video to teach you. Welcome to visit our factory to learn more details by yourself. We also share the slitting rewinding machine and sheets cutting machine operating videos in our YouTube Channel. Q: What about your after-sales service? A: Call us, email us, or video-chat, we will offer solutions within 24 hours Q: What is your terms of payment? A: We accept many kinds of payment. Please contact us for details. Q: What is your advantage? A: Not only good quality but also good service 1. Over 20 years manufacturer 2. All the accessories made by ourselves. 3. We have our own research and development design team. 4. We accept products customization. 5. 24 hours after-sales service and engineer oversea service.
Packing&Delivery:

---
