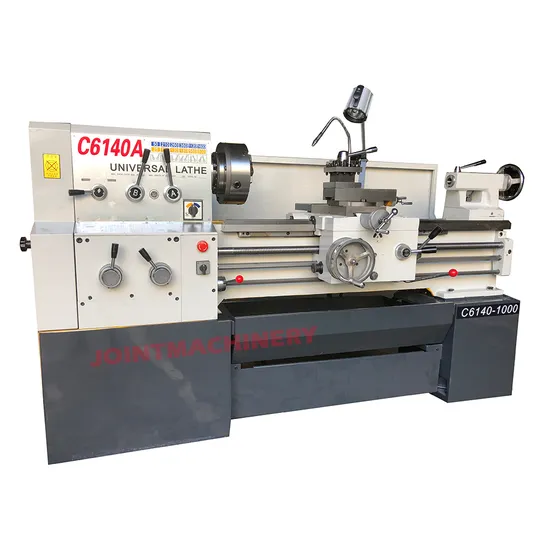

High-Quality Metal Turning Engine Lathe for Precision Machining Needs Horizontal Lathe Tool

Product Description

√ The machine guide way boasts an impressive hardness exceeding HRC52°, expertly crafted using a high-precision CNC guide way grinding machine. This ensures exceptional durability and outstanding precision for body machining.
√ With the lathe head box, feed box, and sliding box all precisely machined at our CNC machine center, we guarantee superior machining precision of each box component.
√ The transmission gear undergoes meticulous CNC gear grinding machining and rigorous noise testing, ensuring remarkably low gear noise and smooth operation.
1. Quenched Guideway
Our quenched guide rail offers exceptional hardness and wear resistance, making it ideal for demanding applications.
2. Tool Post
Equipped with a standard 4 position tool post for versatile operations, and an optional quick-change tool post for enhanced efficiency.
3. Three-Jaw Chuck
Comes standard with a 3-jaw manual chuck, with the option to select a 4-jaw chuck to cater to specific needs.
4. Tailstock
Features a standard manual tailstock, particularly well-suited for machining shaft bar workpieces with precision.
5. Working Light
Integrated with a working light to facilitate seamless operation and enhanced visibility.
High-Quality Metal Turning Engine Lathe for Precision Machining Needs Horizontal Lathe Tool

Model			C6140D/750
Max swing over bed		mm	400
Max work piece length		mm	750
Bed rail width		mm	320
Max turning diameter of work piece on tool holder		mm	240
Maximum longitudinal travel of tool rest		mm	630, 880, 1380
Maximum transverse travel of tool rest		mm	220
Bar diameter		mm	45
Maximum turning diameter of workpiece in saddle groove		mm	580
Valid length of gap		mm	200
Spindle center height		mm	202
Spindle head connection			C6
Through hole diameter of spindle		mm	46
Taper of spindle inner hole			MT6
Spindle rotation speed		r/min	25-1600
Taper of inner hole of top sleeve			MT4
Maximum movement in tip sleeve		mm	130
Maximum lateral movement		mm	±10
Thread	Inch system		80-33/4N/1"
	Metric system		0.45-20mm/r
	Module		0.25-10mm
	Diameter pitch		160-31/2DP
Motor specification			YD132M-8/4-B5 3-4.5KW
Belt specification			4-A-1900mm/4-A-2000mm
Dimension (L*W*H)	750mm	mm	1950*950*1250
	1000mm	mm	2200*950*1250
	1500mm	mm	2700*950*1250
Nei weight	750mm	kg	1400
	1000mm	kg	1500
	1500mm	kg	1600

Shenzhen Joint Machinery Co., Ltd. stands as a leading innovator in the manufacturing and exportation of cutting-edge CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. Our unwavering commitment is to deliver high-quality machinery accompanied by unparalleled service to our esteemed global clientele. With a focus on stringent quality control and continuous improvements, we ensure our products align with the highest industry standards. Our machines are engineered with advanced technologies from Taiwan and Germany, paired with state-of-the-art production processes, resulting in exceptional product quality and dependability. Renowned for their precision, stability, and reliability, our machines adeptly meet diverse complex and high-demand machining requirements. Esteemed worldwide, our products are exported across Asia, Europe, South America, North America, and beyond, earning widespread acclaim from a broad customer base. Through long-term partnerships with international customers, we cultivate significant business value and mutual growth.

---
